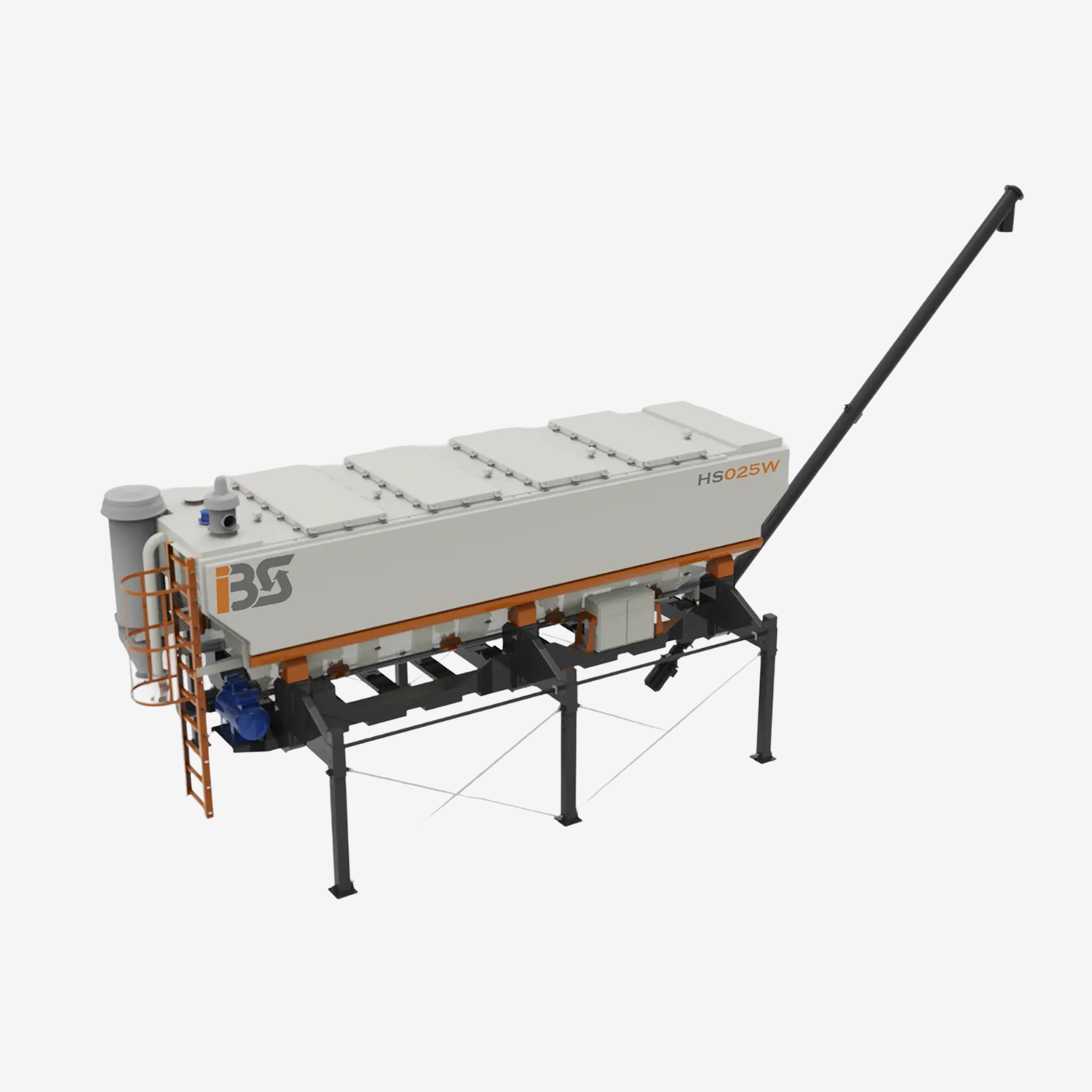

Mobile Horizontal Silo – W-series

General information

The horizontal cement silo with integrated load cells allows precise and fully controlled dosing of cement or similar materials. Equipped with a high accuracy weighing system, the silo continuously monitors the material weight and ensures exact measurement during loading and unloading operations. Thanks to the integrated weighing technology, the silo can operate as an independent dosing unit or as a functional part of a stationary or mobile concrete plant.

Get a quick quote!

The system enables automatic cement dosing according to the desired recipe, while the control unit provides real time information on the weight, filling level, and discharge quantity. The robust design of the silo ensures safe handling and stability during operation and transport. Maintenance is minimal, as all components from load cells to control electronics are easily accessible and protected from environmental influences.

This solution eliminates the need for external weighing devices and allows precise filling of mixers, screw conveyors, or big bags directly from the silo, with exceptional accuracy and repeatability.

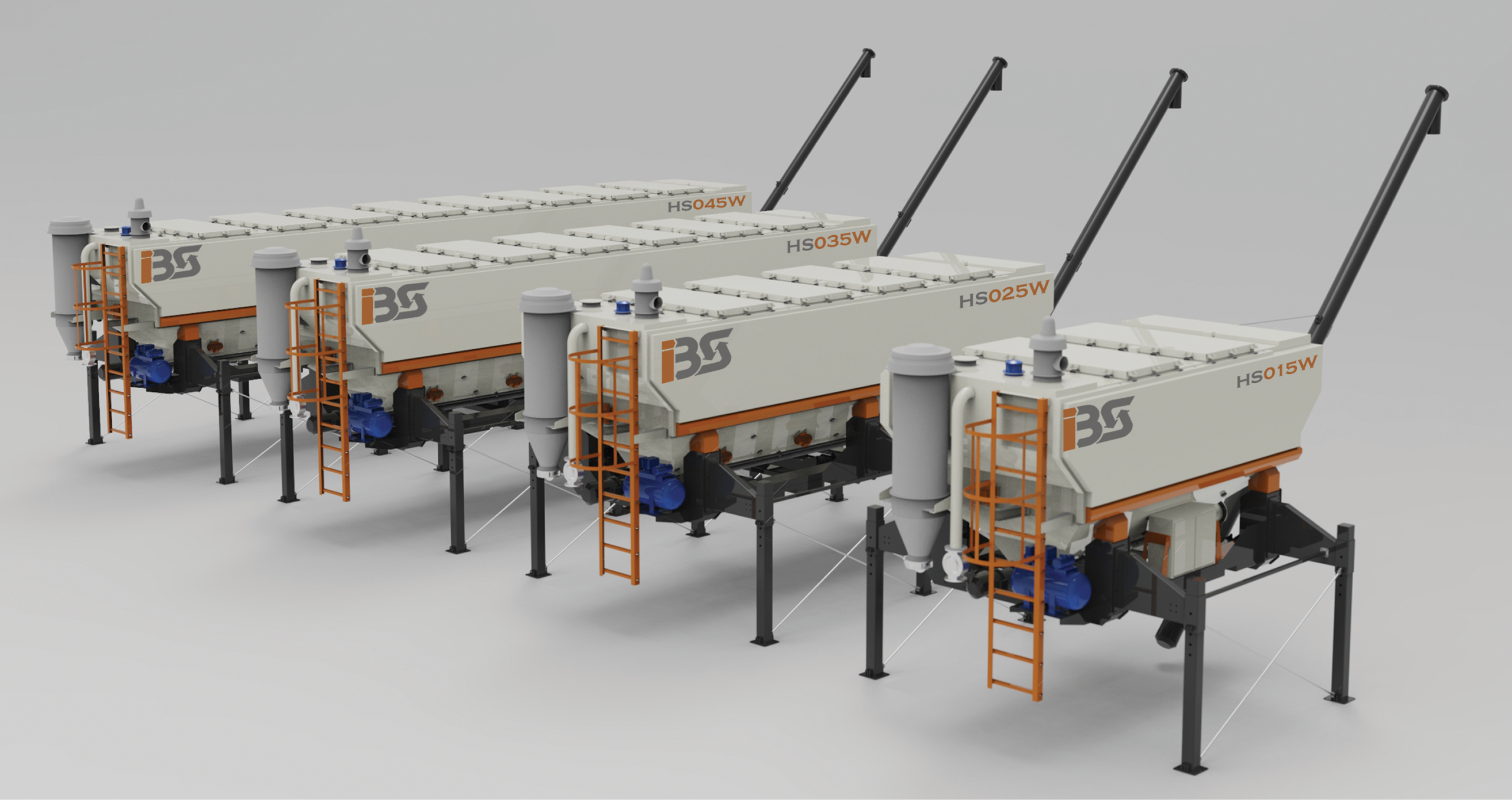

The discharge capacity is available in 15 m3/h, 25 m3/h, and 40 m3/h versions.

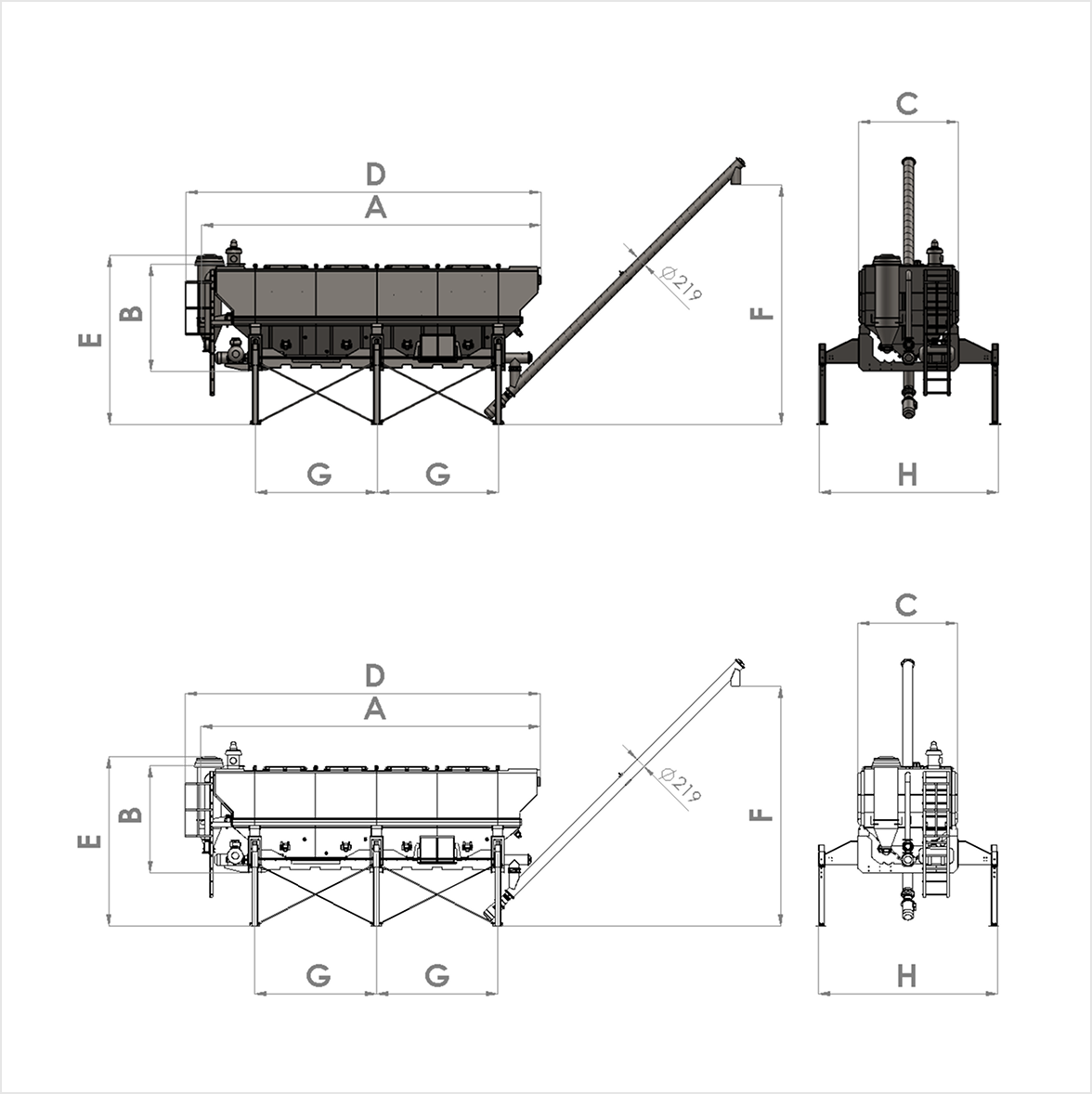

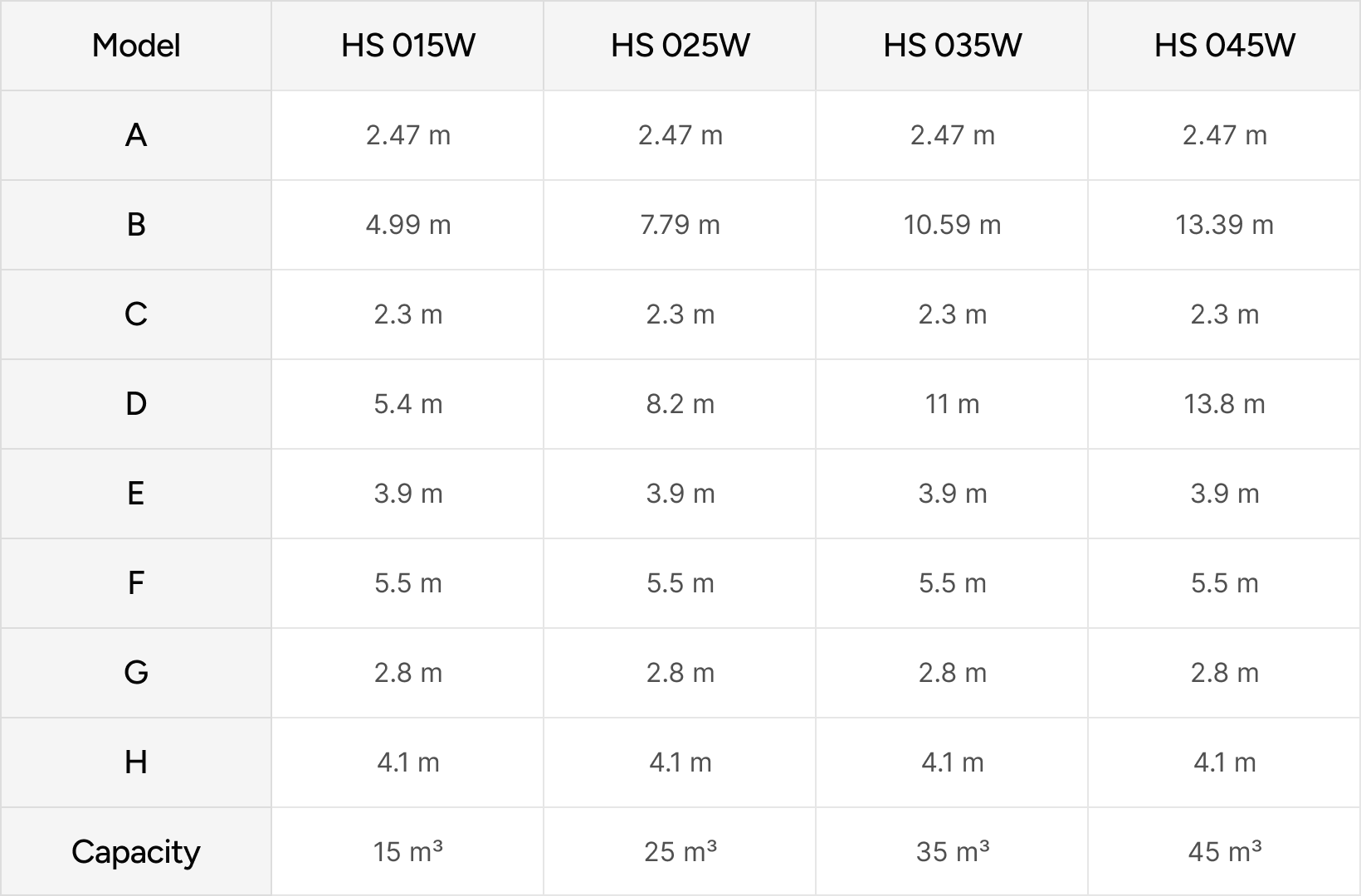

technical specification

Numbers Behind the Performance

advantages

Why Our Machines Deliver More

01.

Engineered for Long-Term Reliability

Our silos are manufactured from high-quality structural steel and designed to maintain full structural integrity during continuous operation, ensuring long service life and dependable performance.

02.

Smart Integration Ready

Each silo is prepared for seamless integration with mobile mixing plants, enabling fast connection and precise, automated discharge control.

03.

Clean and Efficient Material Flow

Optimized discharge geometry, aeration systems, and dust filtration ensure smooth material flow while minimizing blockages, material loss, and dust emissions.

04.

Low Maintenance, High Availability

Designed with simplicity and durability in mind, our silos require minimal maintenance while delivering maximum uptime and reliable day-to-day operation.

05.

Transport-Friendly by Design

The silo is engineered with logistics in mind, simplifying transport, handling, and relocation between job sites.

FAQ

Your Questions, Our Answers

Is the silo suitable only for cement or also for other bulk materials?

The silo is primarily designed for cement storage, but it is also suitable for a wide range of other dry bulk materials with similar physical properties. These include fly ash, lime, mineral fillers, and other fine powders commonly used in the construction industry.

Can the silo be integrated with a concrete batching plant or mobile mixing plant?

Yes, the silo can be easily integrated with both concrete batching plants and mobile mixing plants. In its standard configuration, the silo is already equipped with the necessary electrical components and interfaces that enable fast and straightforward connection to a mobile mixing plant.

What is the expected service life of the silo?

The expected service life of the silo is several decades when operated under normal conditions and with proper maintenance. The silo is manufactured from high-quality structural steel and designed in accordance with applicable international standards to ensure long-term durability and structural integrity.

How long does installation take?

For the horizontal silo, installation is extremely fast and simple. The silo is delivered as a fully pre-assembled unit and does not require special foundations or complex civil works. After positioning the silo on site, installation typically involves only mechanical positioning and basic electrical connections.

Is the discharge continuous or batch-based?

This silo is equipped with an integrated weighing system, and the discharge process is weight-based. Material dosing is controlled according to the required quantity to be discharged from the silo. During operation, the weighing system continuously monitors the extracted material.

Once the set target weight is reached, the discharge is automatically stopped, ensuring accurate and repeatable dosing. This batch-based, weight-controlled discharge method allows precise material control and seamless integration with automated concrete production systems.
