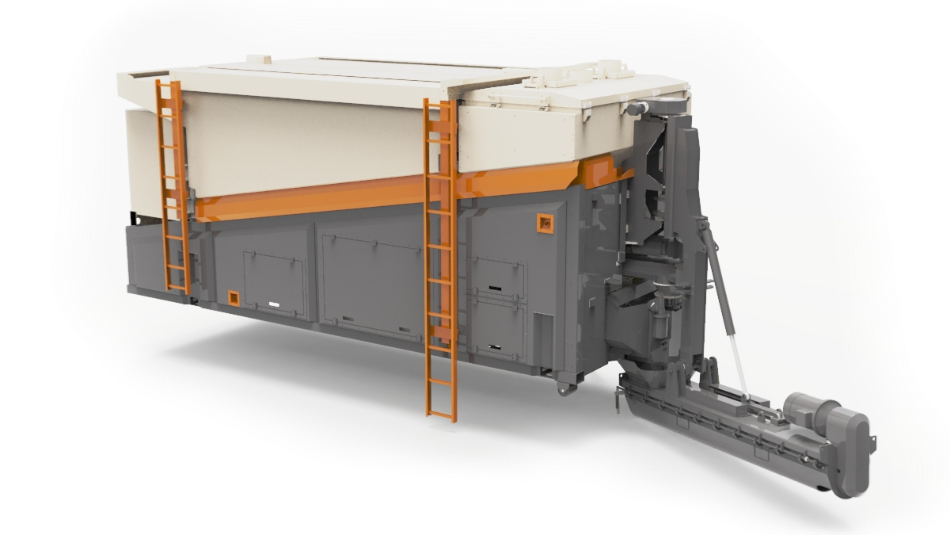

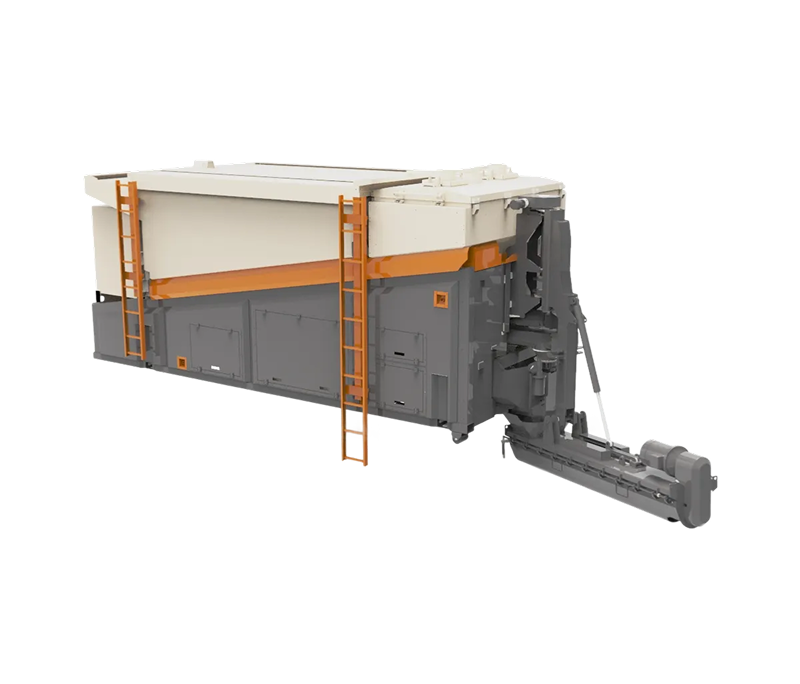

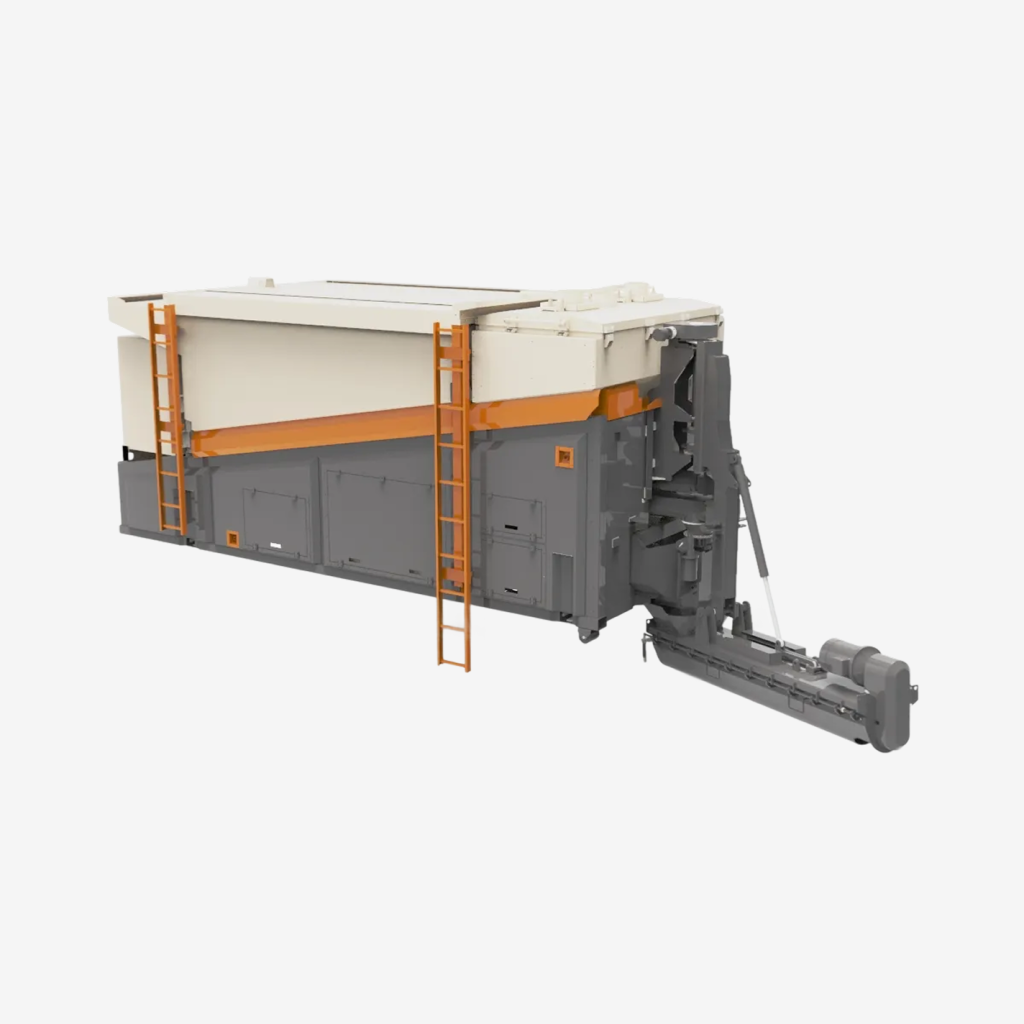

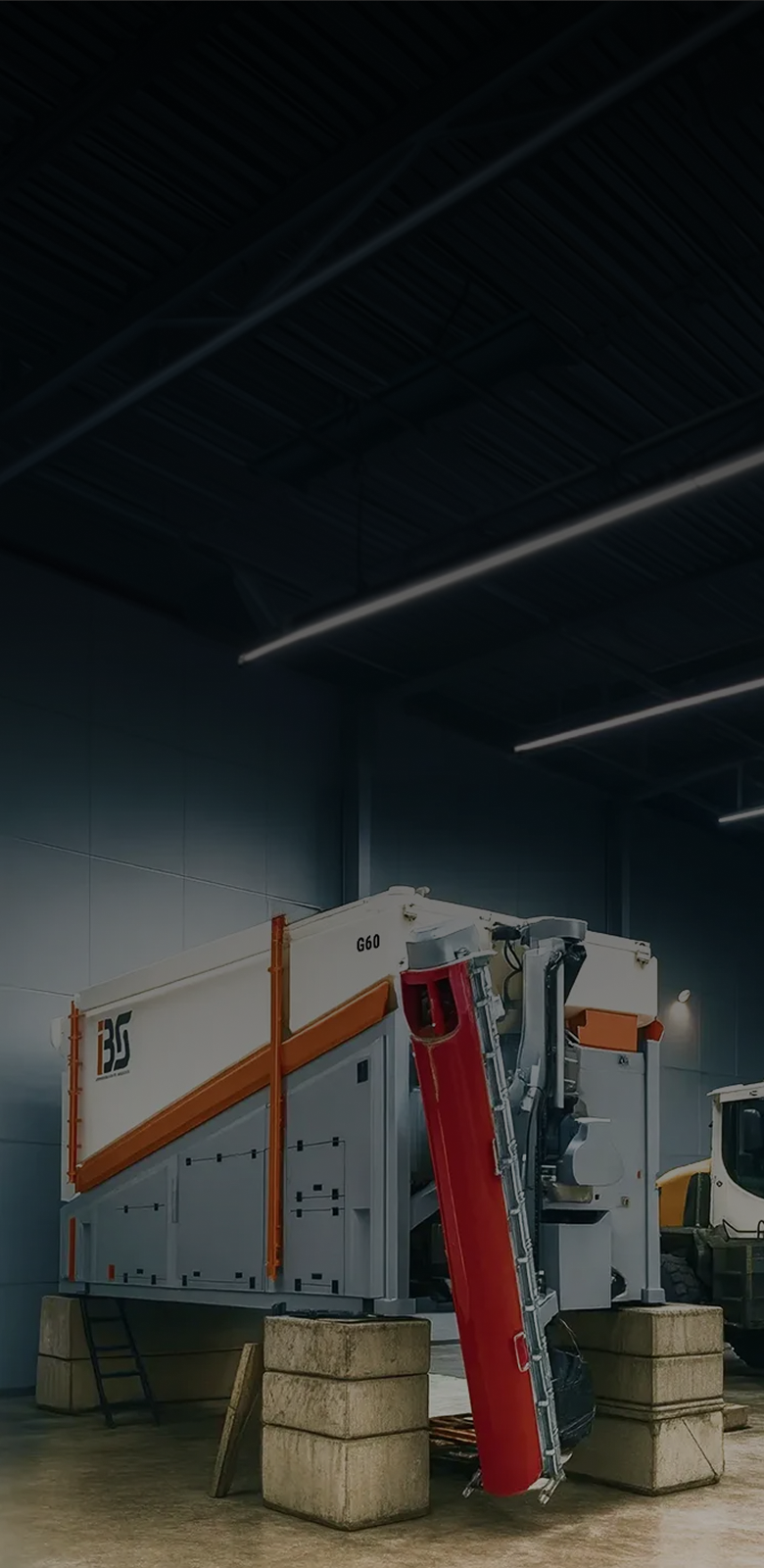

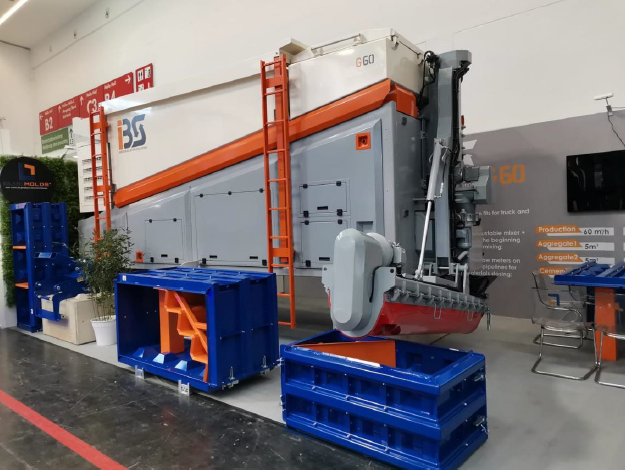

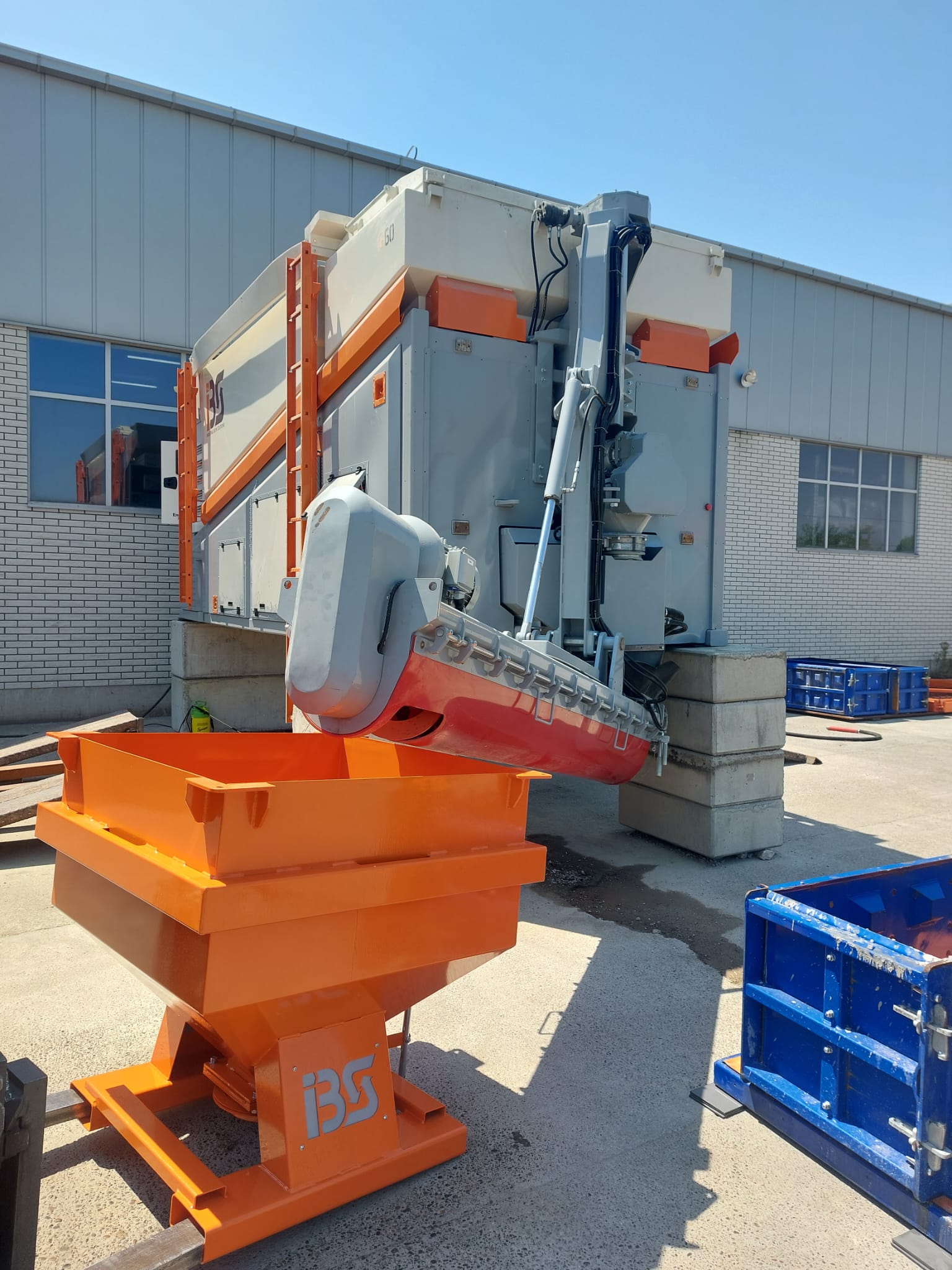

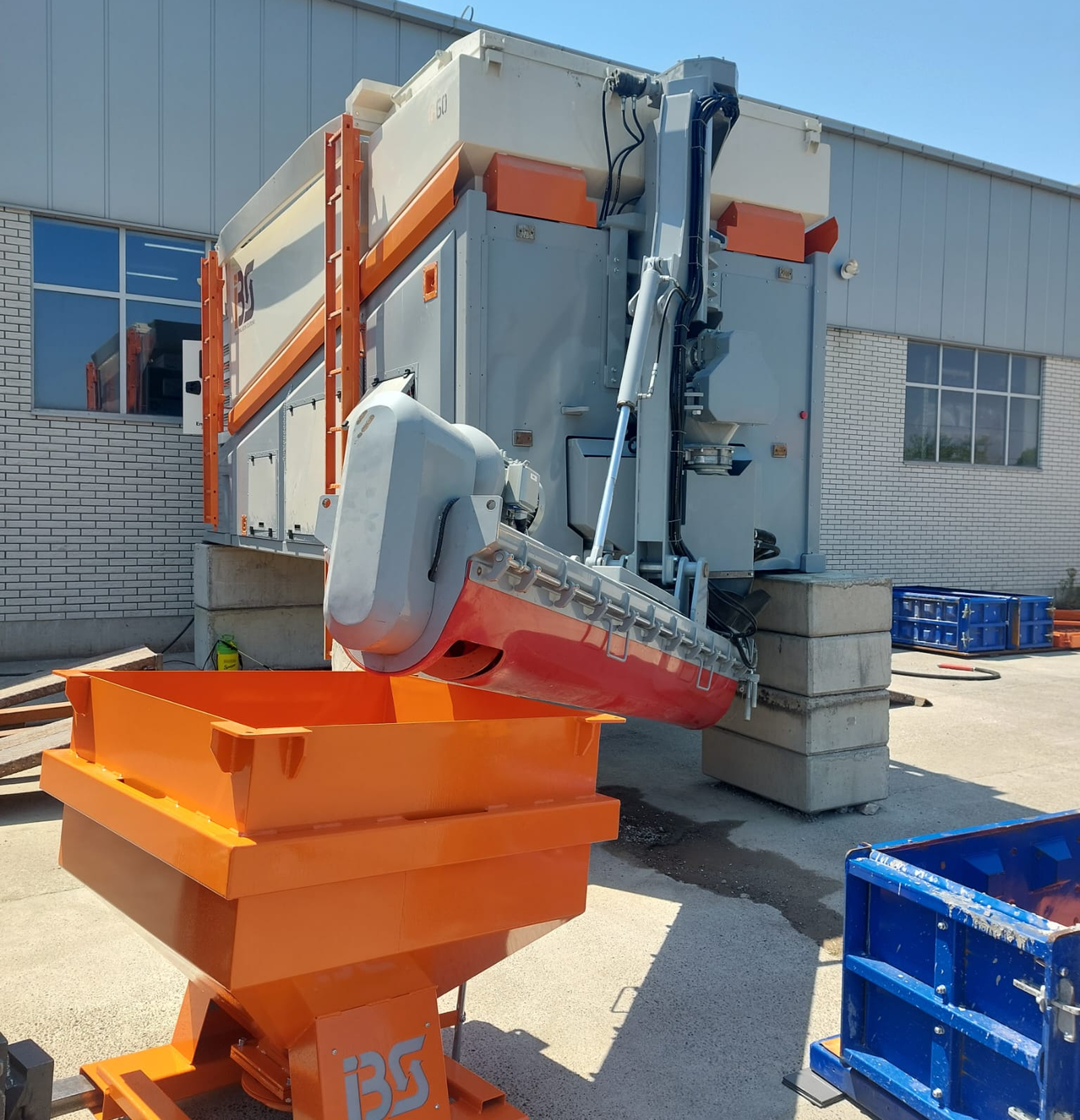

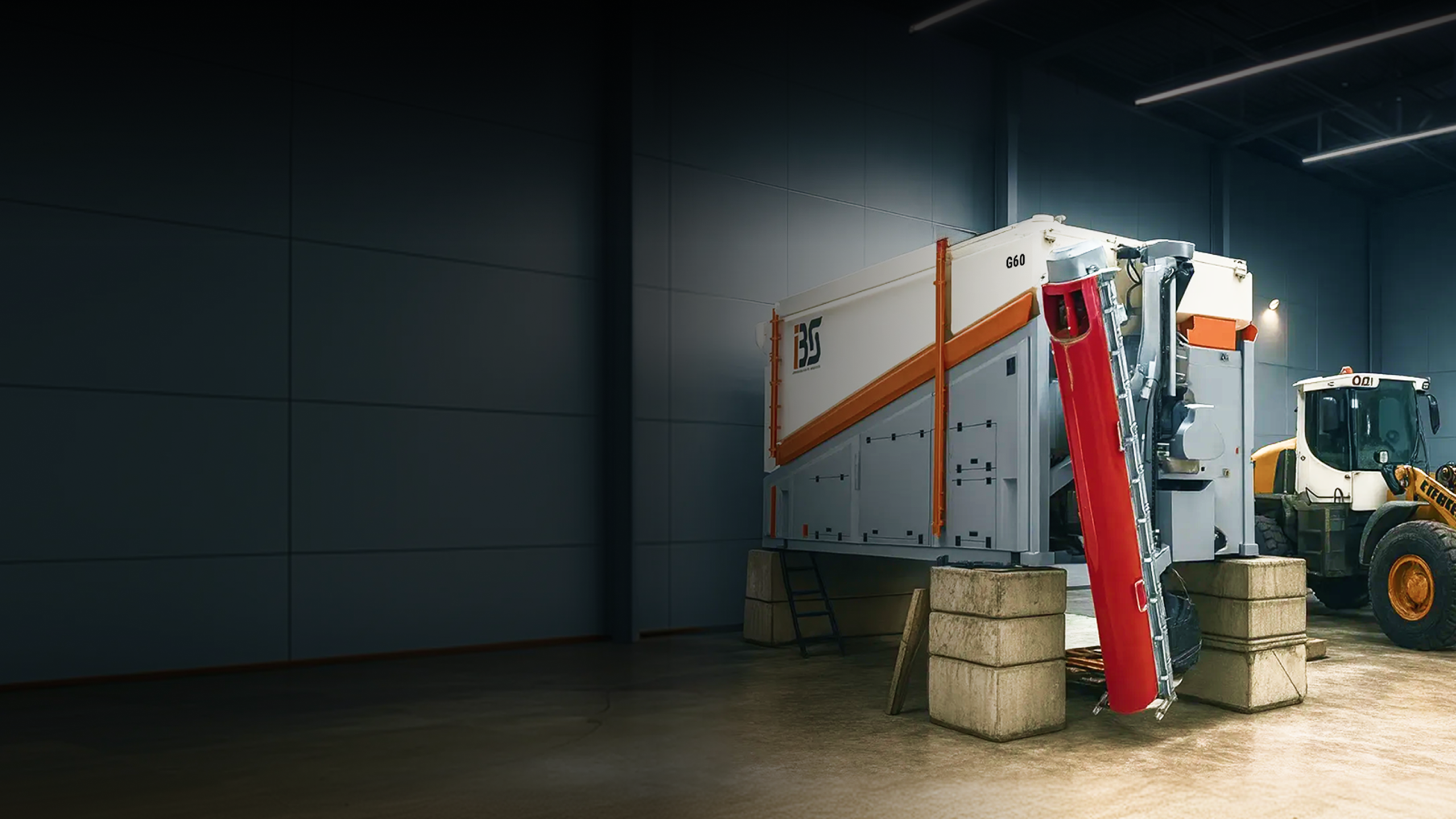

IBS G60 is a concrete mobile gravimetric machine that, in addition to cementitious mixtures, can also produce cold asphalt, cold recycling asphalt, soil stabilization, soil remediation, E-concrete, Eco-road pavement.
The machine has two separate hoppers for aggregates, hopper for cement, and a water tank. Additionally you can have two tanks for two types of additives and an optional emulsion tank. This makes it independent and enables the production of concrete on site, which has many advantages both economically and in terms of the quality of concrete delivered. Thanks to its compact design, it is suitable for work on truck or railway.
Easy to use by only one operator. The recipe is defined by entering the desired quantities of each of the ingredients in the control panel. At the end of the production, the machine prints a list with values for each of the ingredients incorporated into the concrete produced. This guarantees the composition of the concrete that is produced.
Thanks to the measuring cells on the storage hoppers and flow meters on the pipelines, IBS G60 guarantees accurate dosing of each of the ingredients in real time, which enables the production of certified concrete (UNI-EN 206-1 Standard Certifiable concrete).
Unlike many other machines on the market where the production capacity is significantly reduced for recipes with a higher content of one of the ingredients, the IBS G60 can reach a maximum production capacity of 60m3/h for any ratio of incorporated ingredients.
IBS G60 is a concrete mobile gravimetric machine that, in addition to cementitious mixtures, can also produce cold asphalt, cold recycling asphalt, soil stabilization, soil remediation, E-concrete, Eco-road pavement.
Check Our Caracteristicts...Our machine uses a modern automatic control system that ensures top performance, precision and reliability in operation. All storage hoppers are equipped with measuring cells that provide the PLC with data on the current mass of material in real time, enabling precise dosing. The water, emulsion and additive dosing system uses high-precision fluid flow sensors, which ensures accurate dosing of all ingredients and top quality of the final mixture.
Thanks to the previously performed calibration of the aggregates, the system continuously calculates the water content in the aggregates and automatically compensates the dosing of aggregates and water. In this way, the optimal ratio of all ingredients is achieved, which guarantees the stability and quality of the concrete mixture.

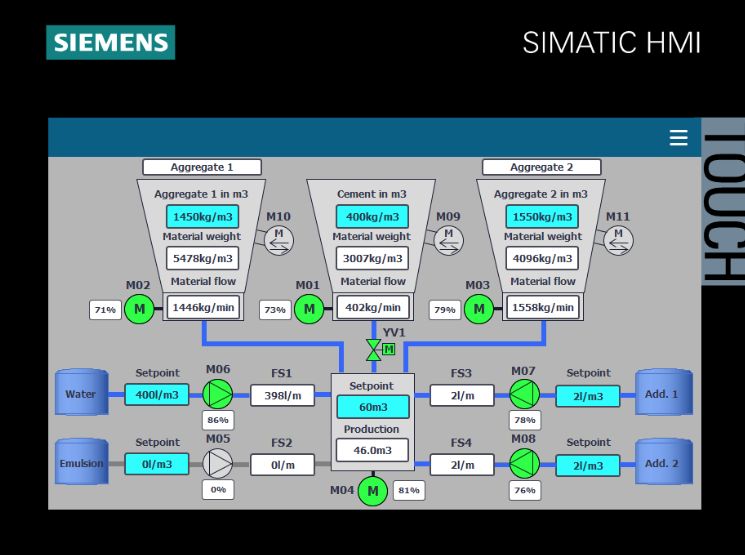

The machine is equipped with a modern operator panel that enables simple and intuitive process management. In addition, the machine can be controlled remotely - via a smartphone, tablet or personal computer. The system is additionally equipped with a device for remote access, which allows the user to monitor working parameters, KPIs and alarm conditions at any time, with the possibility of receiving notifications via e-mail. Defining KPI parameters is possible at the customer's request.
For additional transparency and control of the production process, the machine comes with a thermal printer that, at the end of each batch, generates a report on the ingredients consumed and the total amount of concrete produced.
Suppliers for all equipment integrated into the control system are established on a market as a leading manufacturers, which guarantees a long and reliable operating life of the control system.
Our machine uses a modern automatic control system that ensures top performance, precision and reliability in operation. All storage hoppers are equipped with measuring cells that provide the PLC with data on the current mass of material in real time, enabling precise dosing. The water, emulsion and additive dosing system uses high-precision fluid flow sensors, which ensures accurate dosing of all ingredients and top quality of the final mixture.

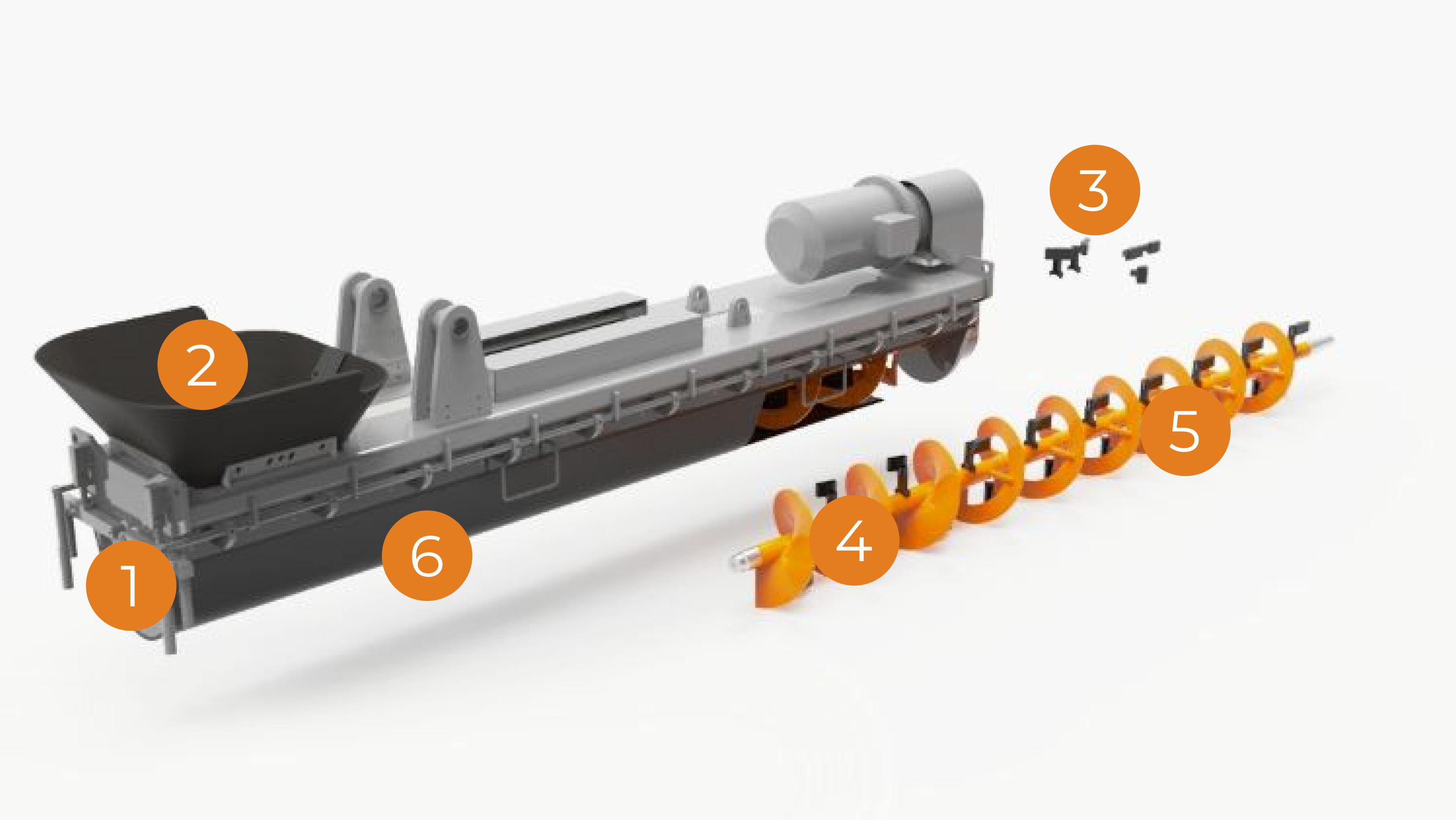

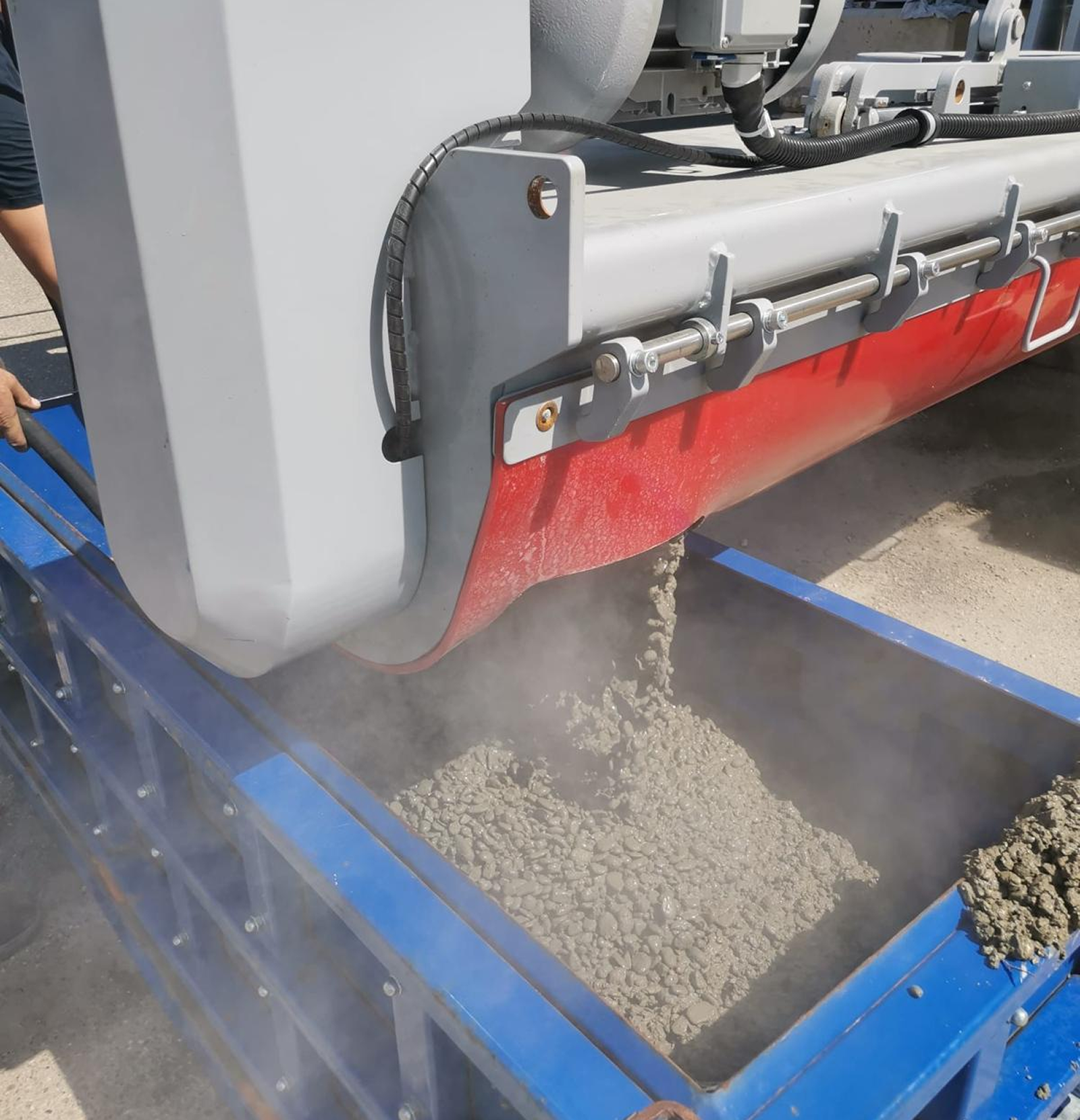

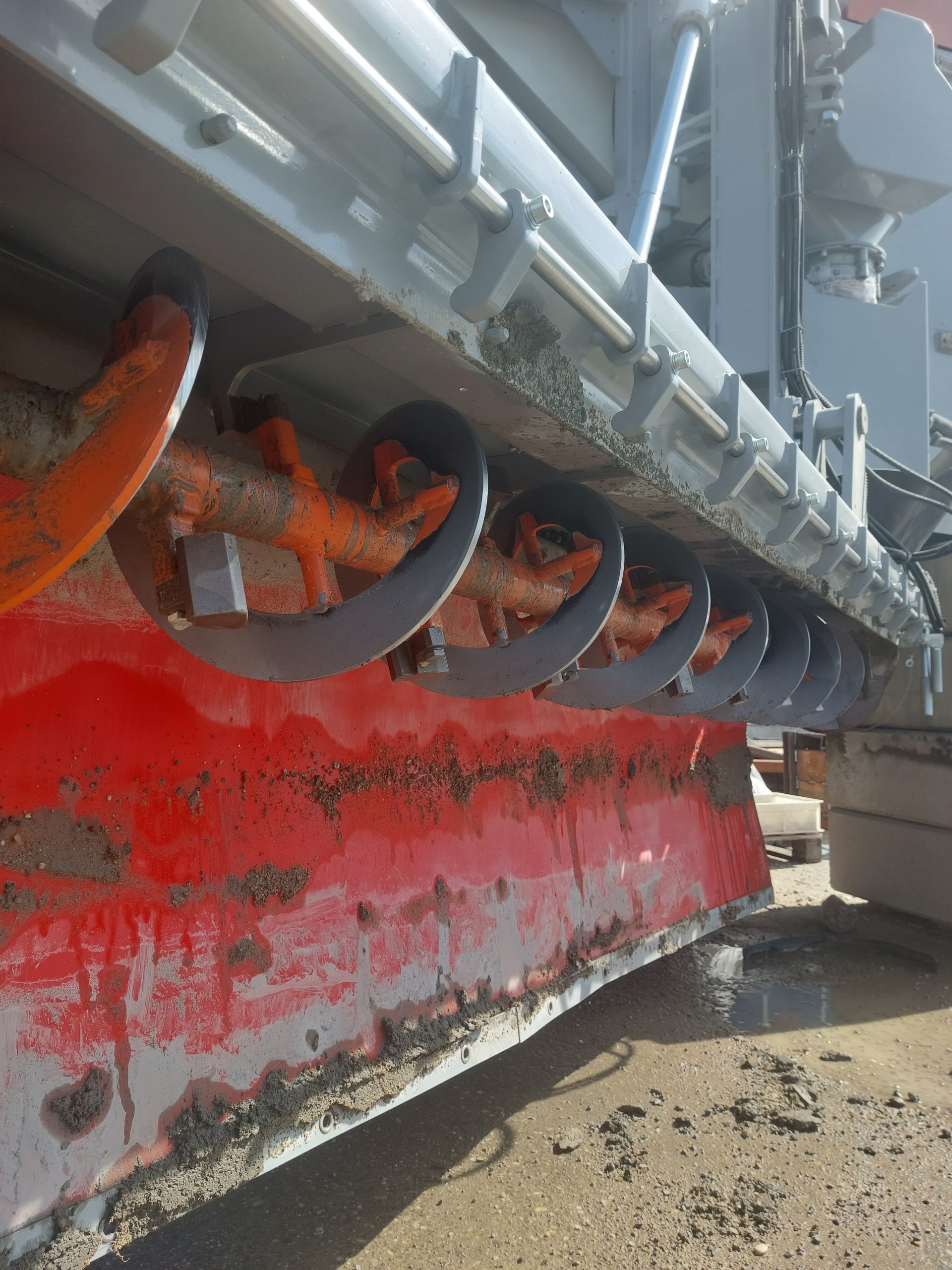

IBS G60 is equipped with a 3 meter long mixer with the input of all ingredients at the beginning of the mixer. Thanks to this, the material has enough time to mix well in the mixer, resulting in a mixture of exceptional quality at the output. The driving spiral and the blades on it enable constant mixing and continuous production of concrete. The mixer is located on a hydraulic support that allows it to be easily positioned in the working position as well as stored in a vertical position for transport by truck or rail. Thanks to the rubber rim on the bottom of the mixer, which can be easily removed and placed on the mixer, washing and cleaning is very simple. The position of the mixer at the end of the machine and on the hydraulic support makes it extremely accessible and easy to maintain. In addition to this, the mixer is equipped with a central lubrication system, which makes regular maintenance even simpler. On the driveshaft of the mixer there is a spiral that mixes the material and moves it through the mixer, in addition to this there are blades on it for better mixing of the material. The carriers of these blades are designed so that the operator can easily adjust the angle of the blades and they can be easily replaced. The blades themselves can be made in many different shapes and sizes.
Central lubrication system on bearings guaranteeslong lifespan and simple maintanance.
The material entrance at the begining of themixer and length of the mixer of 3m guarantee quality mix.
Adjustable angle on blades.
Bladescan easily be replaced.
Blades can be produced in different shapes andsizes.
Rubber pad enable easy cleaning and maintenance.
.svg){kind=small}

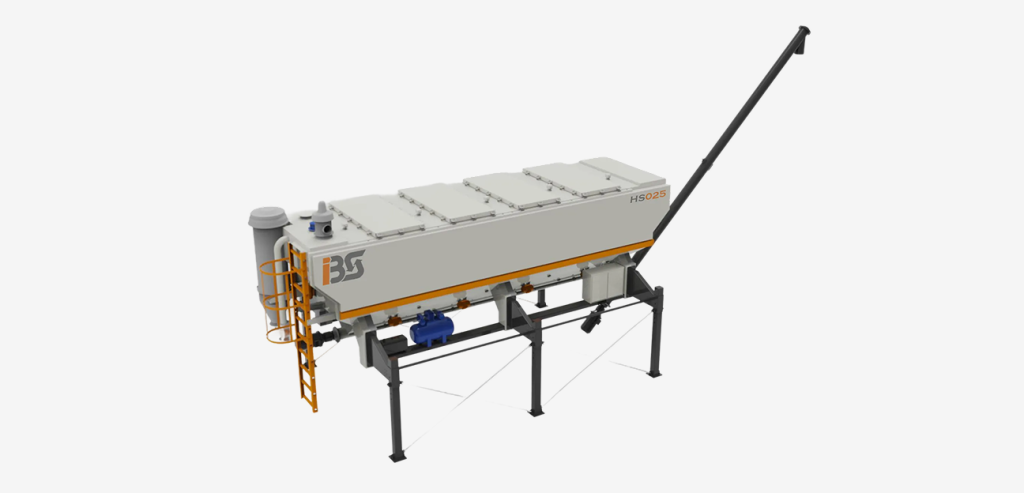

The cement dosing subsystem consists of a 3m³ tank and a screw dispenser. The tank is supported by 4measuring cells, while the drive of the screw dispenser is a brushless synchronous motor, which together results in exceptional precision and control of cement dosing in real time and in all operating modes. At the exit of the screw dispenser there is an automatically operated butterfly valve that does not allow moisture to enter the tank or cement leakage when the machine is not in operation. The screw dispenser and the hopper are connected so that the screw dispenser can be easily removed from the machine, which allows easy maintenance and replacement of parts. Central lubrication supplied to all bearings of the screw dispenser makes regular maintenance simple and guarantees a longer service life of the bearings.

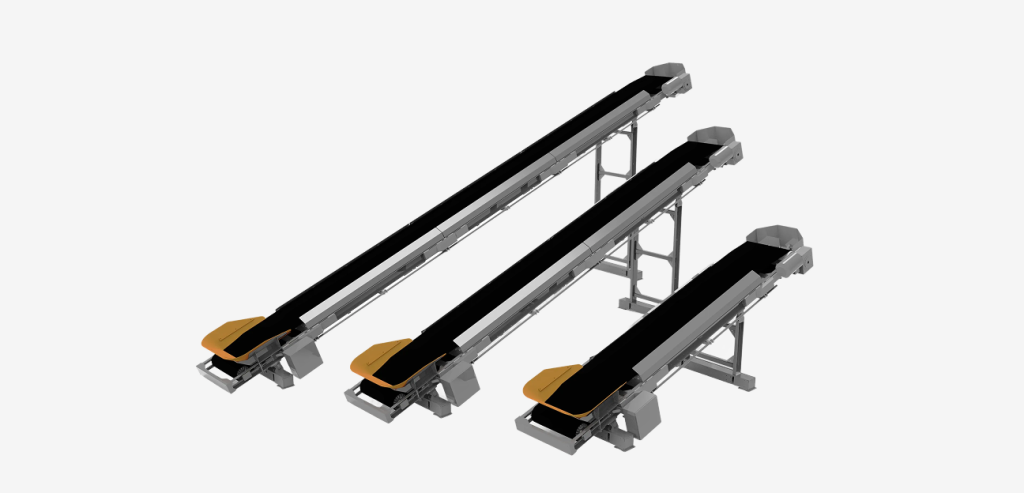

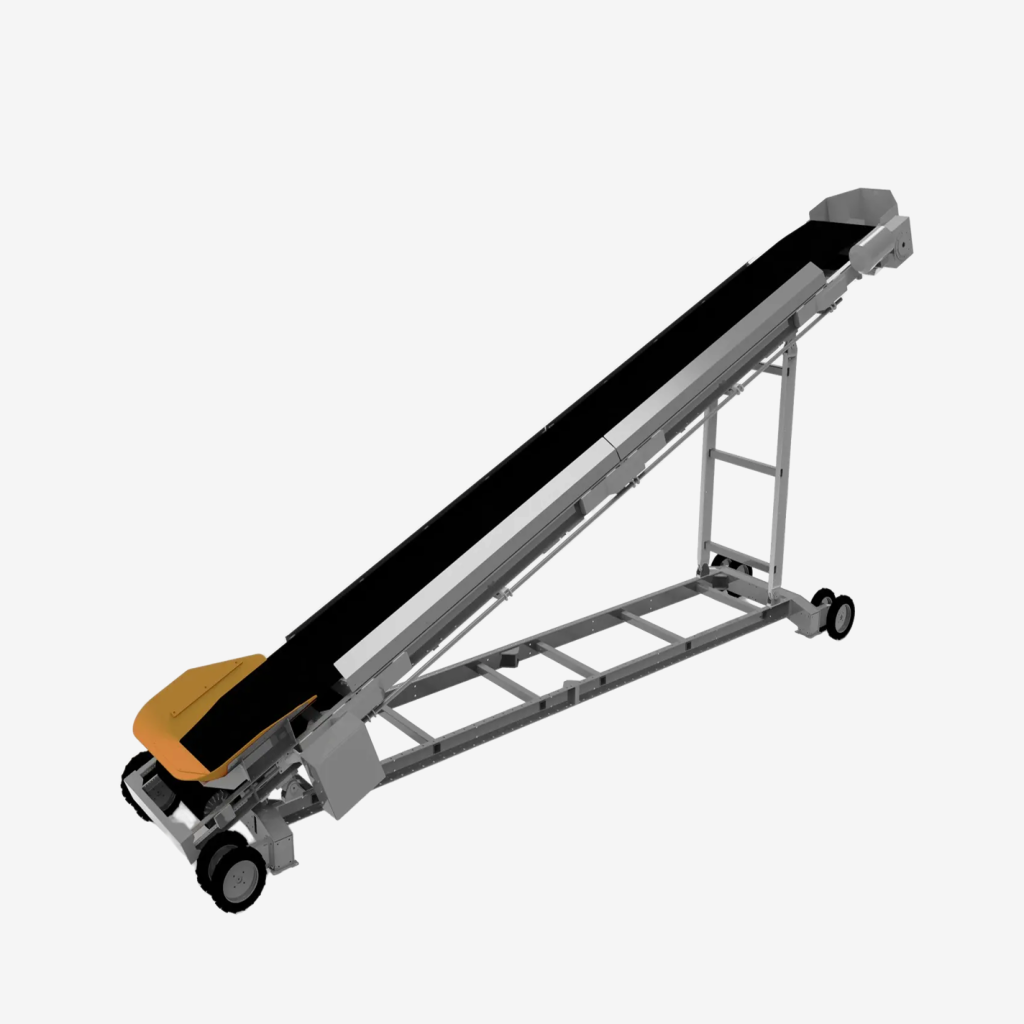

The aggregate dosing system consist in two aggregate hoppers with a volume of 5m³ each and two belt conveyors for the extraction of the aggregate to the mixer. The hoppers are supported by 4 measuring cells each, while the conveyor drive, as well as the cement dosing, is a brushless synchronous motor, which leads to precise and controlled dosing in real time and in all operating modes. All bearings on both conveyors are connected to a central lubrication system, which makes regular maintenance much easier. The conveyor can be easily separated from the hopper and removed from the machine, which allows for simple maintenance.
Screw dispenser can easily be removed for easymaintenance.
Central lubrication on all bearings guaranteelong lifespan and easy service.
Buterfly valve on exit of dosing system does notallow moisture to enter the tank or cement leakage.
Hopper with load cells and brushless motorensure precise dosing and constant rotation speed.
3m³ cement hopper capacity.
5m³ material hopper capacity.
Hopper with load cells and brushless motorguarantee precise dosing.
Conveyor drive can easily be detached fromhopper enables easy cleaning and maintanance.
Central lubrication system on all conveyorbearings guarantee long lifespan and easy maintanance.

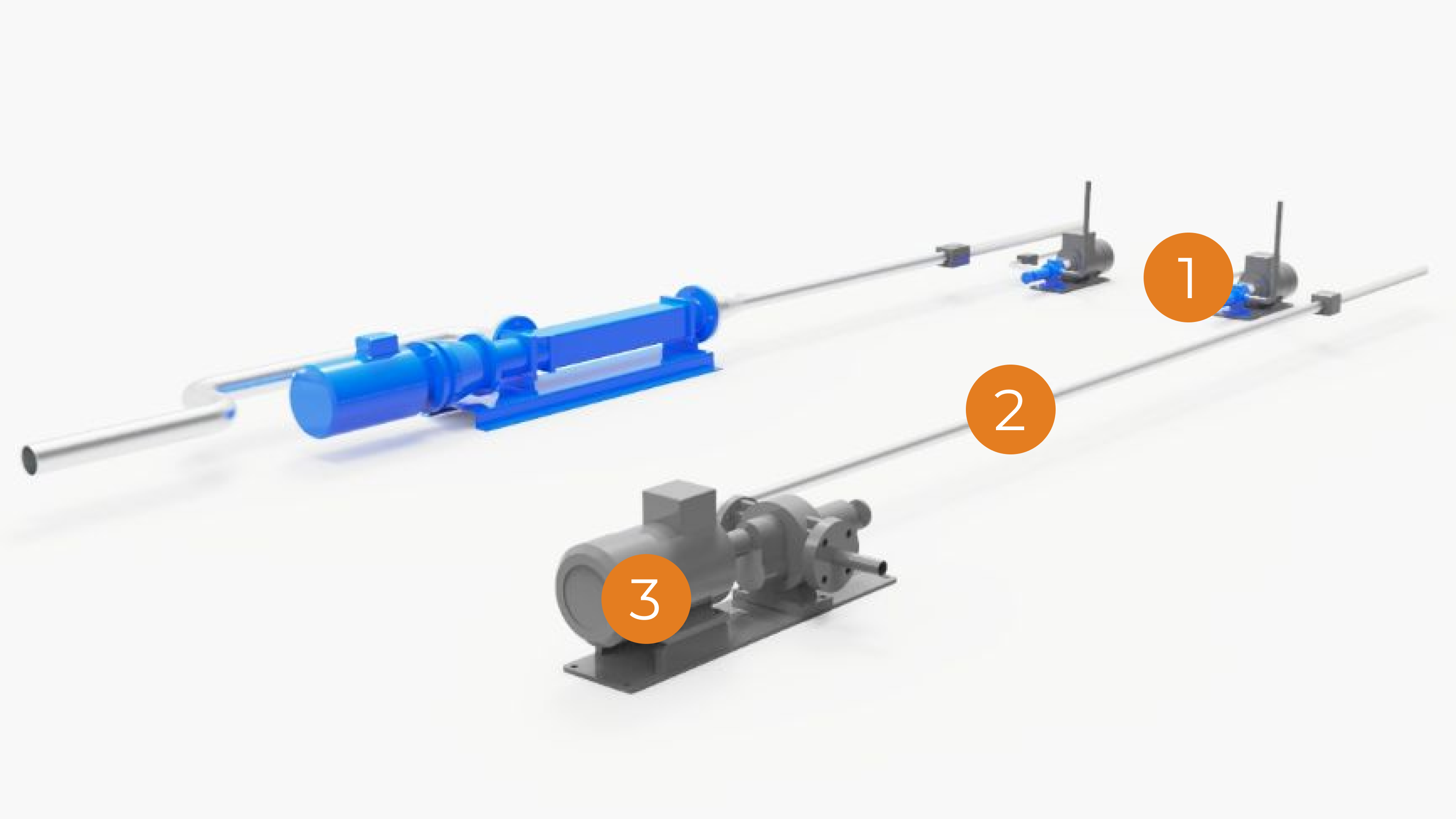

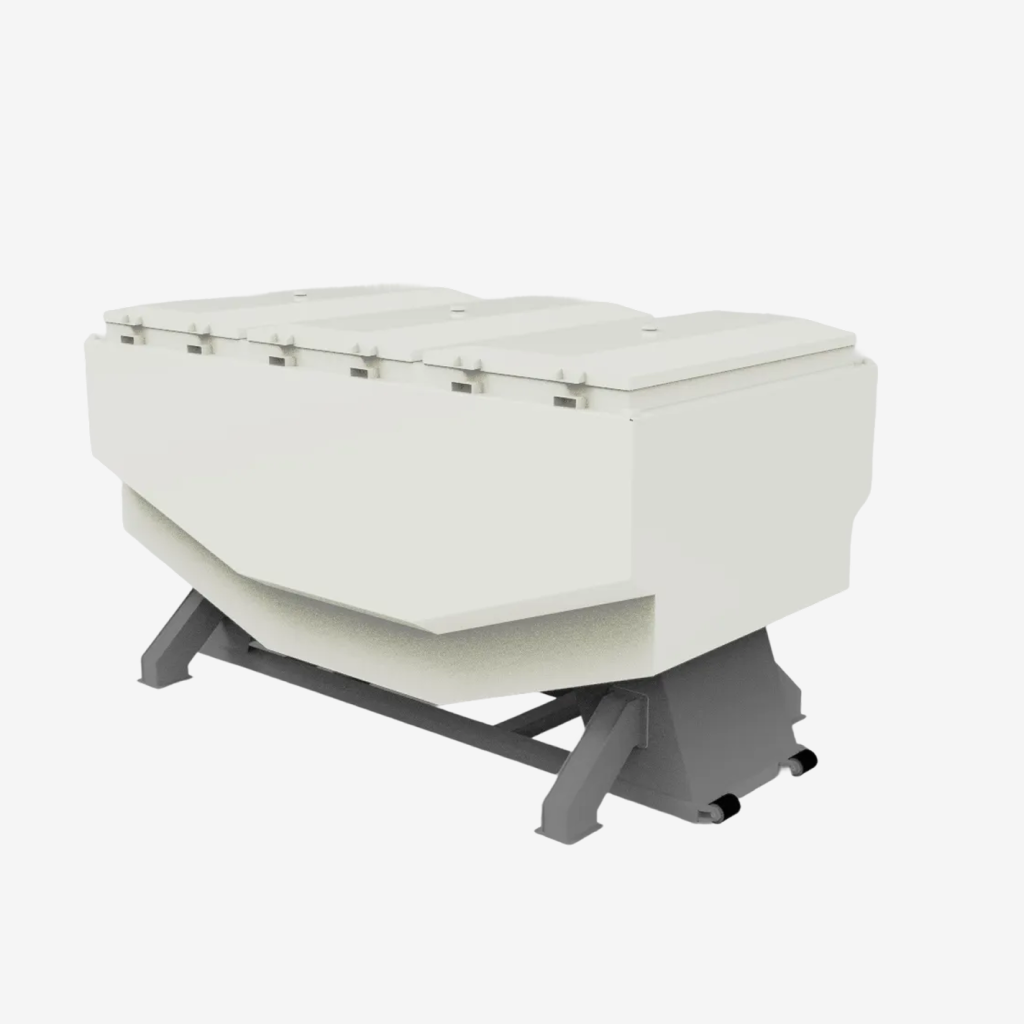

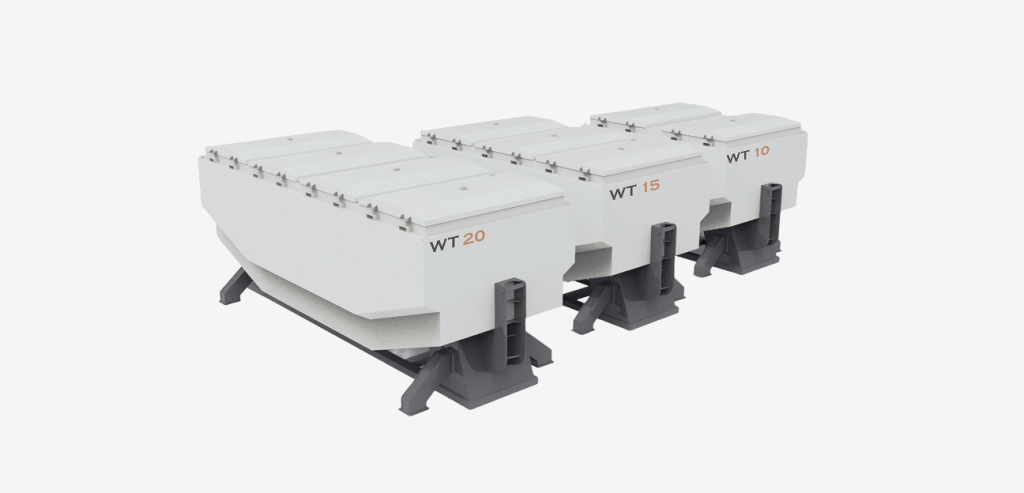

The water dosing subsystem consists of a coil pump, a tank, pipelines and a flow meter. The subsystem for dosing concrete additives consists of two tanks for two types of additives, two pumps, two pipelines and two flow meters. The bitumen emulsion dosing subsystem consists of a pump, pipeline and flow meter, while a tank can be optionally added at the customer's request. All tanks and pipelines are made of stainless steel, which guarantees quality and long service life. The pipelines are separable so that the pipes can be easily cleaned, which is especially important in the case of bitumen emulsion. There is a flow meter on each of the pipelines which, in conjunction with the control system, guarantees controlled and precise dosing of these materials.
In addition to all of the above, it should be added that the IBS G60 mobile concrete machine is acombination of compact design, stability, strength and precision, which is reflected in all its features andperformance. Decades of experience in mechanical engineering, production technologies, automaticcontrol, as well as production and exploitation of concrete production equipment have been incorporatedinto the design and production of this machine. All that together made this machine bring a set of the bestsolutions from these fields and become a choice for those for whom quality is the first selection criterion.
Pipelines and additive/water tanks made ofstainless steel guarantee long lifespan.
Separate pipelines ensure easily replacableparts and easy cleaning.
Flow meters and brushless motor ensure precise dosing.
IBS G60 is equipped with a 3 meter long mixer with the input of all ingredients at the beginning of the mixer.
Thanks to this, the material has enough time to mix well in the mixer, resulting in a mixture of exceptional quality at the output. The driving spiral and the blades on it enable constant mixing and continuous production of concrete. The mixer is located on a hydraulic support that allows it to be easily positioned in the working position as well as stored in a vertical position for transport by truck or rail. Thanks to the rubber rim on the bottom of the mixer, which can be easily removed and placed on the mixer, washing and cleaning is very simple. The position of the mixer at the end of the machine and on the hydraulic support makes it extremely accessible and easy to maintain. In addition to this, the mixer is equipped with a central lubrication system, which makes regular maintenance even simpler. On the driveshaft of the mixer there is a spiral that mixes the material and moves it through the mixer, in addition to this there are blades on it for better mixing of the material. The carriers of these blades are designed so that the operator can easily adjust the angle of the blades and they can be easily replaced. The blades themselves can be made in many different shapes and sizes.
Read moreThe cement dosing subsystem consists of a 3 m3 tank and a screw dispenser. The tank is supported by 4measuring cells, while the
drive of the screw dispenser is a brushless synchronous motor, which together results in exceptional precision and control of cement dosing in real time and in all operating modes. At the exit of the screw dispenser there is an automatically operated butterfly valve that does not allow moisture to enter the tank or cement leakage when the machine is not in operation. The screw dispenser and the hopper are connected so that the screw dispenser can be easily removed from the machine, which allows easy maintenance and replacement of parts. Central lubrication supplied to all bearings of the screw dispenser makes regular maintenance simple and guarantees a longer service life of the bearings.
1. Central lubrication system on bearingsguarantees long lifespan and simple maintanance.
2. The material entrance at the begining of themixer and length of the mixer of 3m guarantee quality mix.
3. Adjustable angle on blades.
4. Blades can easily be replaced.
5. Blades can be produced in different shapes andsizes.
6. Rubber pad enable easy cleaning and maintenance.
The aggregate dosing system consist in two aggregate hoppers with a volume of 5 m3 each and two belt conveyors for the
1. 3 m3 cement hoppercapacity
2. Hopper with load cells and brushless motor ensure precise dosing and constantrotation speed.
3. Screw dispenser can easily be removed for easy maintenance.
4. Central lubrication on all bearings guarantee long lifespan and easy service.
5. Buterfly valve on exit of dosing system does not allow moisture to enter thetank or cement leakage.
The water dosing subsystem consists of a coil pump, a tank, pipelines and a flow meter. The subsystem for dosing concrete additives
1. 5m3 material hoppercapacity
2. Hopper with load cells and brushless motor guarantee precise dosing.
3. Conveyor drive can easily be detached from hopper enables easy cleaning andmaintanance
4. Central lubrication system on all conveyor bearings guarantee long lifespan andeasy maintanance.
In addition to all of the above, it should be added that the IBS G60 mobile concrete machine is a combination of compact design,
1. Pipelines and additive/water tanks made of stainless steel guarantee long lifespan.
2. Separate pipelines ensure easily replacable parts and easy cleaning.
3. Flow meters and brushless motor ensure precise dosing.
IBS G60 is equipped with a 3 meter long mixer with the input of all ingredients at the beginning of the mixer. Thanks to this, the material has enough time to mix well in the mixer, resulting in a mixture ofexceptional quality at the output. The driving spiral and the
blades on it enable constant mixing andcontinuous production of concrete. The mixer is located on a hydraulic support that allows it to be easilypositioned in the working position as well as stored in a vertical position for transport by truck or rail.Thanks to the rubber rim on the bottom of the mixer, which can be easily removed and placed on themixer, washing and cleaning is very simple. The position of the mixer at the end of the machine and onthe hydraulic support makes it extremely accessible and easy to maintain. In addition to this, the mixer isequipped with a central lubrication system, which makes regular maintenance even simpler. On the driveshaft of the mixer there is a spiral that mixes the material and moves it through the mixer, in addition tothis there are blades on it for better mixing of the material. The carriers of these blades are designed sothat the operator can easily adjust the angle of the blades and they can be easily replaced. The bladesthemselves can be made in many different shapes and sizes.
Read moreThe cement dosing subsystem consists of a 3 m3 tank and a screw dispenser. The tank is supported by 4measuring cells, while the drive of the screw dispenser is a
brushless synchronous motor, which together results inexceptional precision and control of cement dosing in real time and in all operating modes. At the exit of thescrew dispenser there is an automatically operated butterfly valve that does not allow moisture to enter the tank orcement leakage when the machine is not in operation. The screw dispenser and the hopper are connected so thatthe screw dispenser can be easily removed from the machine, which allows easy maintenance and replacement ofparts. Central lubrication supplied to all bearings of the screw dispenser makes regular maintenance simple andguarantees a longer service life of the bearings.
Read moreAdvantages1. Central lubrication system on bearingsguarantees long lifespan and simple maintanance.
2. The material entrance at the begining of themixer and length of the mixer of 3m guarantee quality mix.
3. Adjustable angle on blades.
4. Blades can easily be replaced.
5. Blades can be produced in different shapes andsizes.
6. Rubber pad enable easy cleaning and maintenance.
The aggregate dosing system consist in two aggregate hoppers with a volume of 5 m3 each and two beltconveyors for the extraction of the aggregate to the mixer.
1. 3 m3 cement hoppercapacity
2. Hopper with load cells and brushless motor ensure precise dosing and constantrotation speed.
3. Screw dispenser can easily be removed for easy maintenance.
4. Central lubrication on all bearings guarantee long lifespan and easy service.
5. Buterfly valve on exit of dosing system does not allow moisture to enter thetank or cement leakage.
The water dosing subsystem consists of a coil pump, a tank, pipelines and a flow meter.The subsystem for dosing concrete additives consists of two tanks for two
1. 5m3 material hoppercapacity
2.Hopper with load cells and brushless motor guarantee precise dosing.
3.Conveyor drive can easily be detached from hopper enables easy cleaning andmaintanance
4.Central lubrication system on all conveyor bearings guarantee long lifespan andeasy maintanance.
In addition to all of the above, it should be added that the IBS G60 mobile concrete machine is acombination of compact design, stability, strength and precision,
1. Pipelines and additive/water tanks made of stainless steel guarantee long lifespan.
2. Separate pipelines ensure easily replacable parts and easy cleaning.
3. Flow meters and brushless motor ensure precise dosing.
.svg)

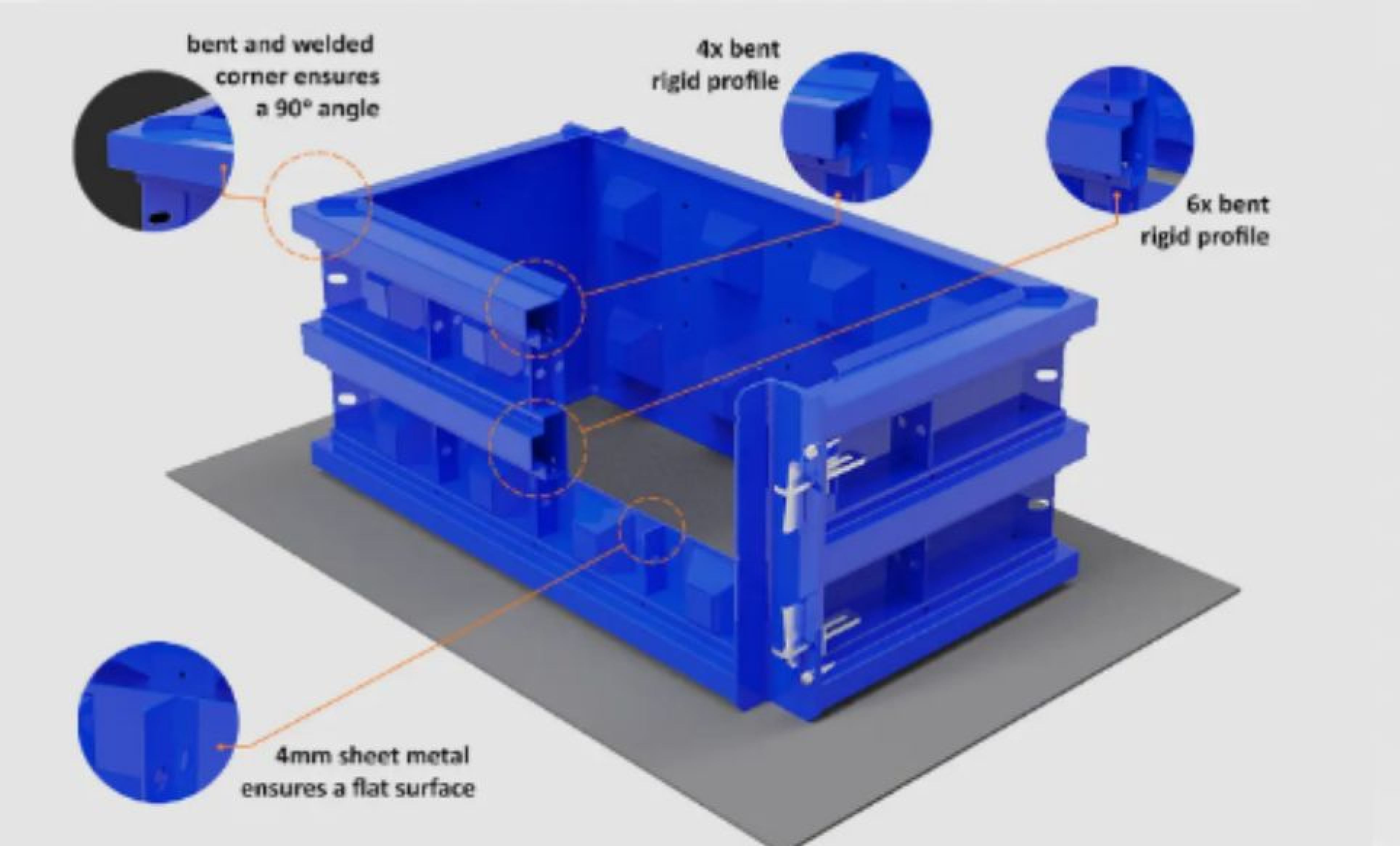

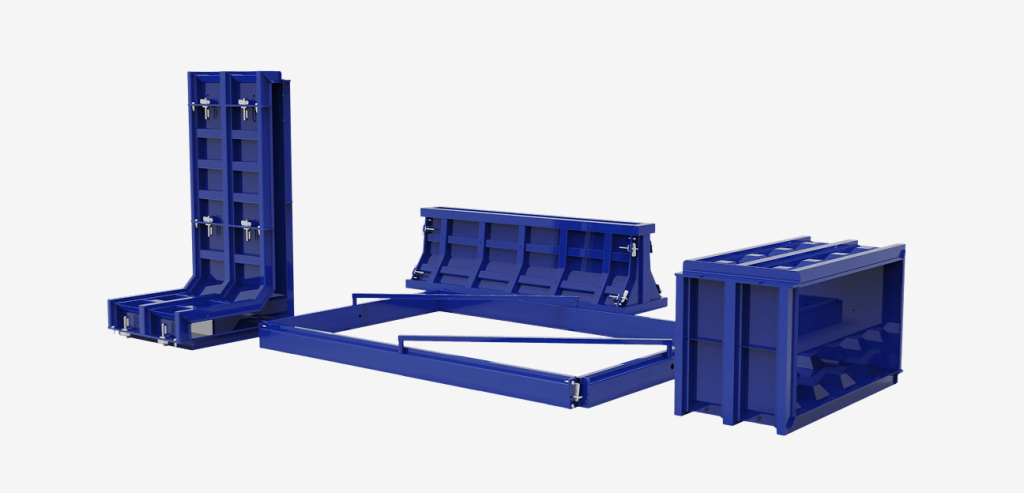

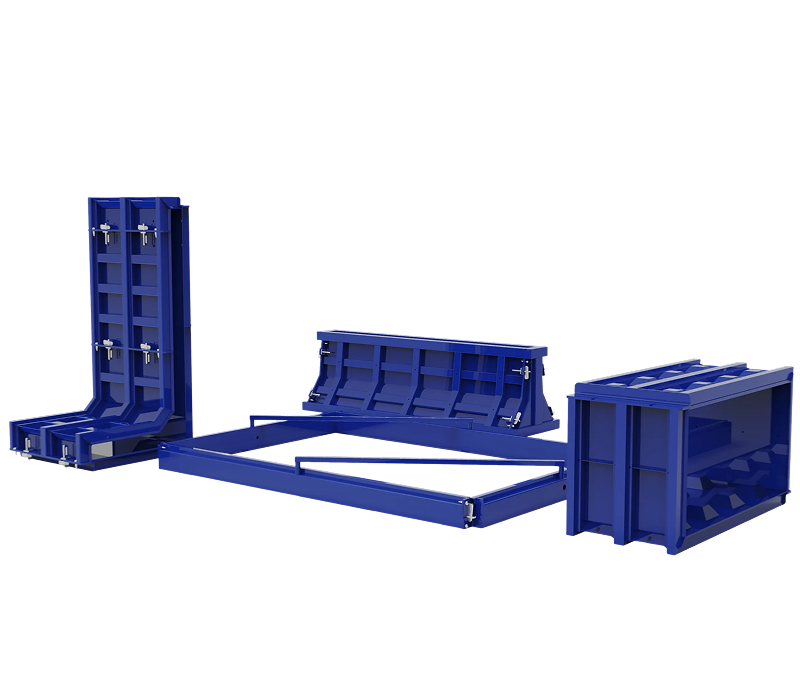

Blue Molds® dividers are steel parts used to be placed inside concrete blockmoulds to divide the space, enabling the production of multiple smaller or differently shaped blocks from a single mould. Dividers allow manufacturers to maximise the use of their existing concrete block moulds, increase productivity, and reduce costs.
Blue Molds® dividers are steel parts used to be placed inside concrete blockmoulds to divide the space, enabling the production of multiple smaller or differently shaped blocks from a single mould. Dividers allow manufacturers to maximise the use of their existing concrete block moulds, increase productivity, and reduce costs.

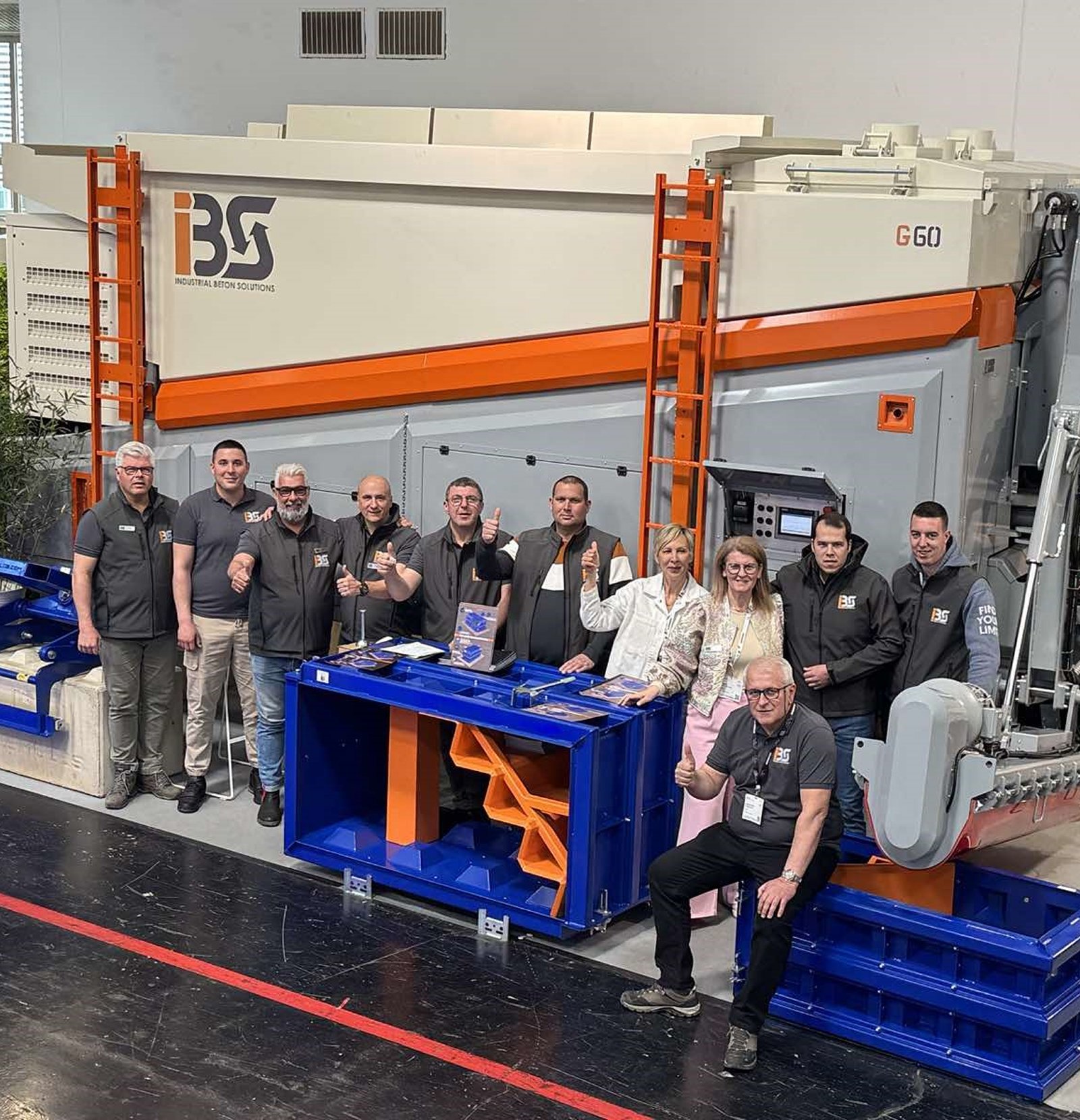

IBS is a brand that presents itself to the concrete equipment market with the mobile concretemachine IBS G60, as the first product in this field. However, this is not our first contact with this market. Thebrand is actually another product line of the Slovenian company Fab Construction d.o.o., which together with theFAB DOO factory in Serbia has decades of experience in manufacturing and sales of concrete and other industrialequipment. As the most important value in our company, we emphasize quality, which we do not deviate from.The fact that we do it successfully is evidenced by thousands of satisfied customers who have been returning to usregularly for more than 35 years. In the future at IBS we see a whole range of mobile concrete productionmachines of different sizes and types as well as additional equipment for them. With our machines you will enjoythe satisfaction of making the right choice and the feeling of quality that is becoming increasingly rare.
IBS is a brand that presents itself to the concrete equipment market with the mobile concretemachine IBS G60, as the first product in this field. However, this is not our first contact with this market. The brand is actually another product line of the Slovenian
Read moreContact UsIBS is a brand that presents itself to the concrete equipment market with the mobile concretemachine IBS G60, as the first product in this field. However, this is not our first contact with this market. The brand is actually another product line of the Slovenian company Fab Construction d.o.o., which together
