Belt Conveyors

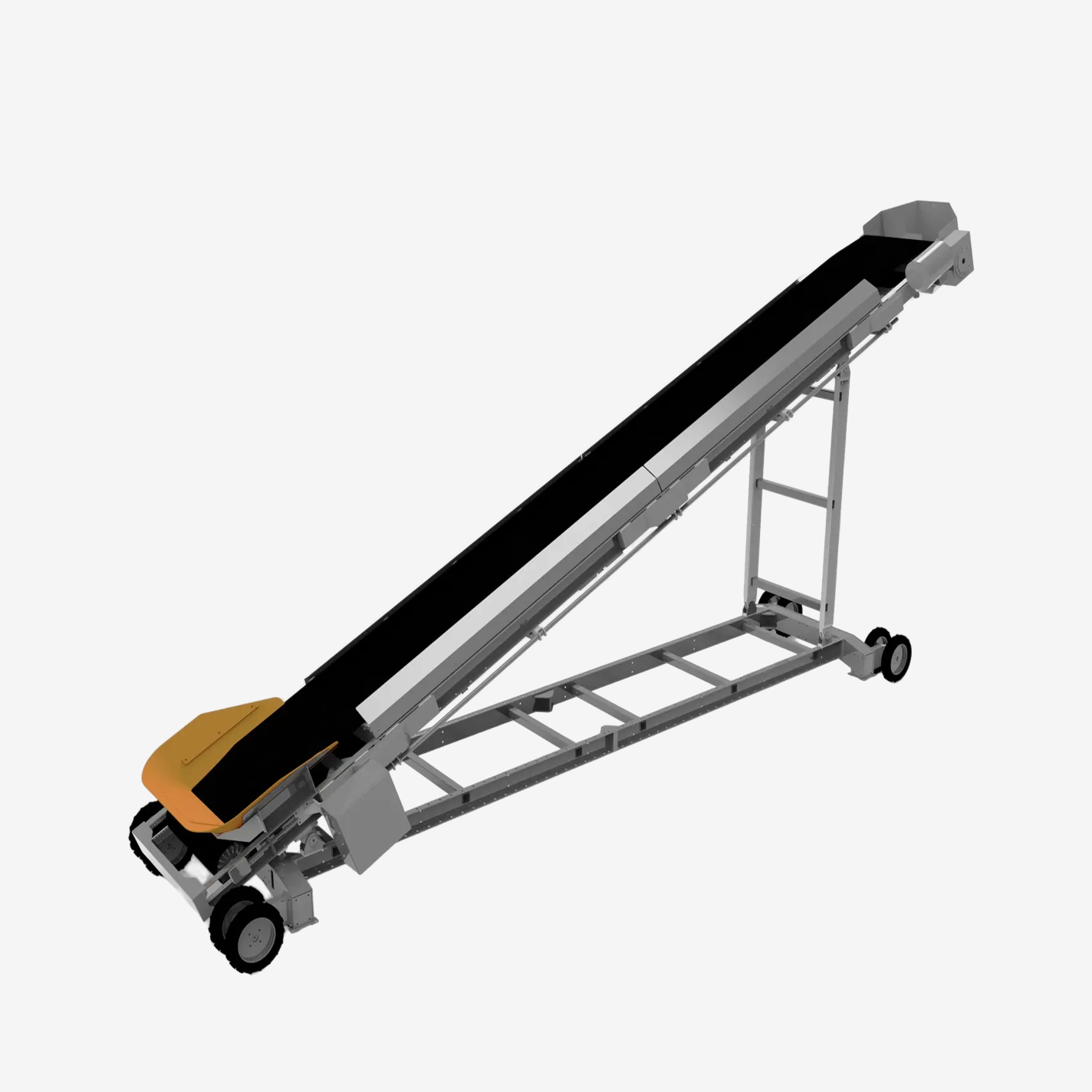

Conveyors – Adjustable height and angle

General information

These conveyors, with it’s modular structure, gives to the customer many different options. This type of conveyor have base that allows it to stand with no need for any fixing element for ground, which also means that it can be easily moved from place to place with no need for installation. This base and support that can be movable along the base enables quick and easy adjustment of height and angle of conveyor.

Get a quick quote!

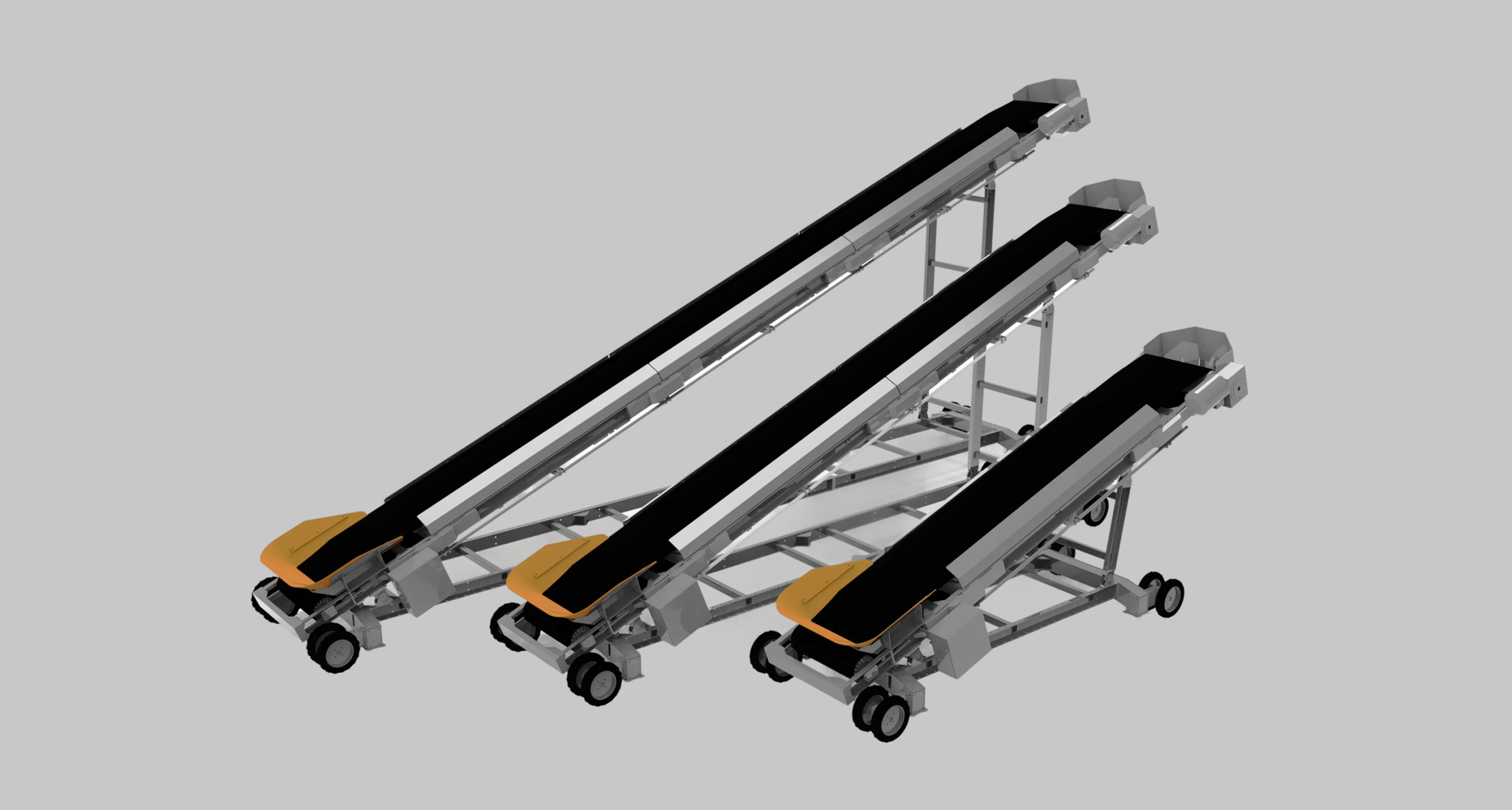

Conveyors are produced in standard lengths of 5m, 8m and 11m and width of 800 mm. Any other length or width is possible at special request of customer. Speed of the belt can be fixed, but also is possible as an option to have conveyor with speed control. Conveyors also have a pipeline for additional water if customer wants to add water to concrete at outlet of conveyor.

High quality materials for production of conveyors, as well as high quality components that are installed, guarantees a long use.

All parts are powder coated, which results with big resistance to weather conditions.

Base of conveyor is designed to have an option to add various accessories, such as wheel, hook or extended foot. Customer can use the wheels in two ways, to move conveyor easily in side direction, or to move it forward / backward. In combination with hook on the back and wheels on front side of the base, conveyor can be moved by truck or any other working machine. Extended foot is designed to be used if additional stability is necessary.

With choice of this type of conveyor, customer gets completely mobile solution with a lot of additional options as well as possibility of adjustment to it’s special need.

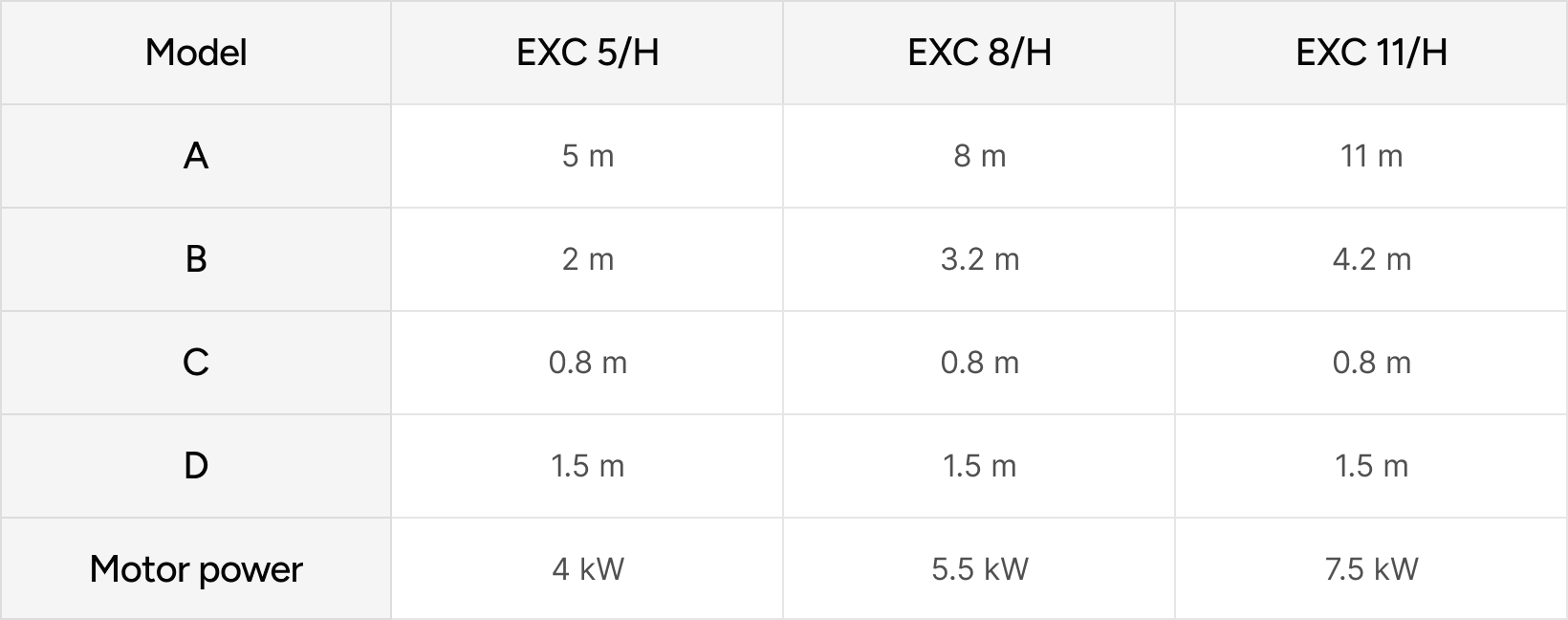

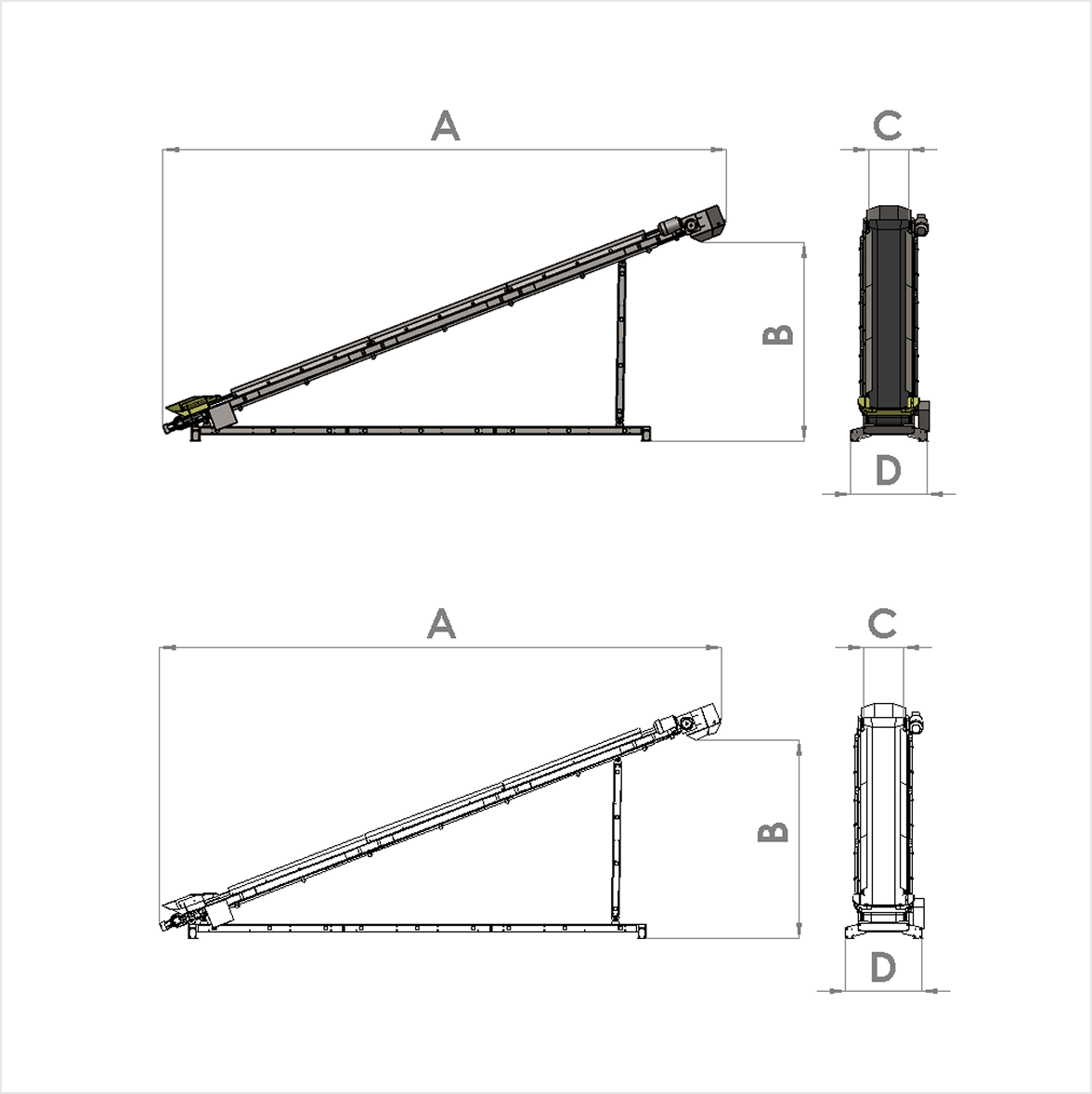

technical specification

Numbers Behind the Performance

advantages

Why Our Machines Deliver More

01.

Stable and Consistent Material Transport

Designed for continuous operation, our belt conveyors ensure smooth and uniform material flow without interruptions.

02.

Robust Construction for Heavy-Duty Use

The conveyor structure is built from high-quality steel to withstand constant loading and demanding site conditions.

03.

Low Maintenance, High Availability

Simple mechanical design and proven components reduce maintenance needs and maximize uptime.

04.

Clean and Controlled Operation

Proper belt tracking and optimized discharge points minimize material spillage and dust during operation.

05.

Easy Integration into Production Systems

Belt conveyors are designed for seamless integration with mobile mixing plants and material storage systems.

FAQ

Your Questions, Our Answers

Which materials can be transported using belt conveyors?

Belt conveyors are suitable for aggregates, sand, gravel, crushed stone, recycled materials, and other bulk materials with similar physical properties.

Can the belt conveyor be customized?

Yes. Belt conveyors can be customized in terms of length, width, inclination angle, discharge height, belt type, and drive configuration.

Can the belt conveyor be integrated with a batching plant or mobile mixing plant?

Yes. Belt conveyors can be easily integrated with concrete batching plants, mobile mixing plants, and other material handling systems.

What maintenance is required?

Maintenance is minimal and includes belt inspection, roller lubrication, and periodic checks of the drive unit.

How long does installation take?

The belt conveyor does not require any special civil works. Once positioned on site, installation is quick and simple, and the conveyor can typically be ready for operation within a few minutes. This allows for fast commissioning and immediate use, even in time-critical projects.
